How to Fix Crystallization Problems: The Modern Troubleshooting Guide

There are 6 common reasons why proteins won't crystallize: flexibility, surface entropy, heterogeneity, wrong boundaries, aggregation, and missing cofactors. The critical question is that: How do you fix it?

We'll cover systematic solutions for each failure mode, modern AI-driven prediction, and a real-world case study of rescuing an "uncrystallizable" GPCR.

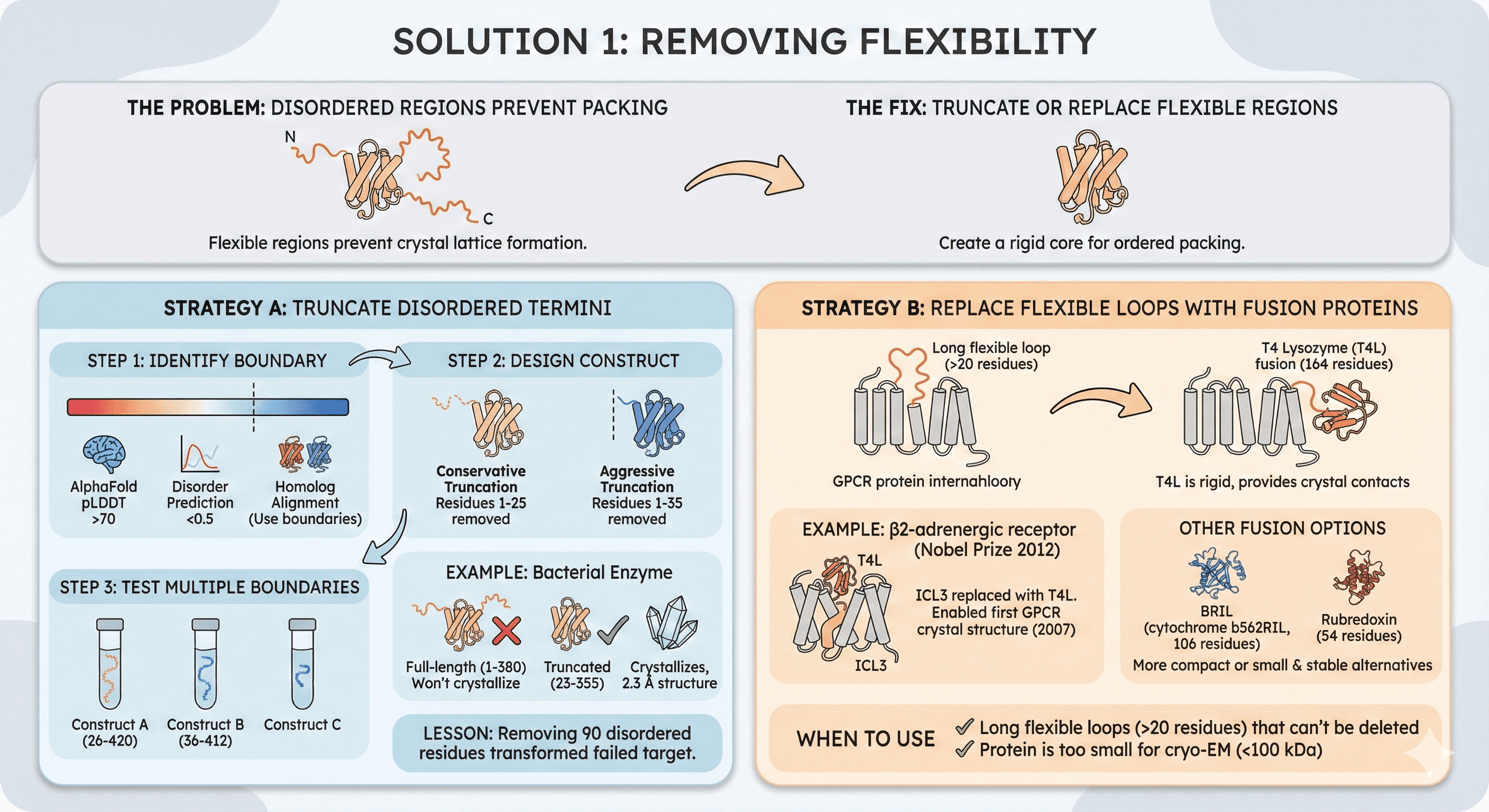

Solution 1: Removing Flexibility

The problem: Disordered termini or flexible loops prevent crystal packing.

The fix: Truncate or replace flexible regions.

Strategy A: Truncate Disordered Termini

Step 1: Identify boundary

AlphaFold pLDDT: First/last residue with pLDDT >70
Disorder prediction (IUPred): First/last residue with score <0.5
Homolog alignment: Use boundaries from closest crystal structure

Step 2: Design construct

Conservative truncation: Remove only clearly disordered regions
- Example: If residues 1-25 have pLDDT <50, start at residue 26
Aggressive truncation: Remove all questionable regions
- Example: If residues 1-35 have pLDDT <70, start at residue 36

Step 3: Test multiple boundaries

Design 2-3 constructs with different boundaries
- Construct A: Residues 26-420 (conservative)
- Construct B: Residues 36-412 (aggressive)

Example: Bacterial enzyme

Full-length (1-380): Won't crystallize
Truncated (23-355): Crystallizes, 2.3 Å structure
Lesson: Removing 90 disordered residues transformed failed target

Strategy B: Replace Flexible Loops with Fusion Proteins

For GPCRs and proteins with long internal loops (>20 residues)

T4 Lysozyme (T4L) fusion:

Replace flexible loop (e.g., GPCR ICL3) with T4 lysozyme (164 residues)
T4L is rigid, provides crystal contacts
Example: β2-adrenergic receptor (Nobel Prize 2012)
- ICL3 replaced with T4L
- Enabled first GPCR crystal structure (2007)

Other fusion options:

BRIL (cytochrome b562RIL): 106 residues, more compact than T4L
Rubredoxin: 54 residues, small and stable

When to use:

Long flexible loops (>20 residues) that can't be deleted
Protein is too small for cryo-EM (<100 kDa)

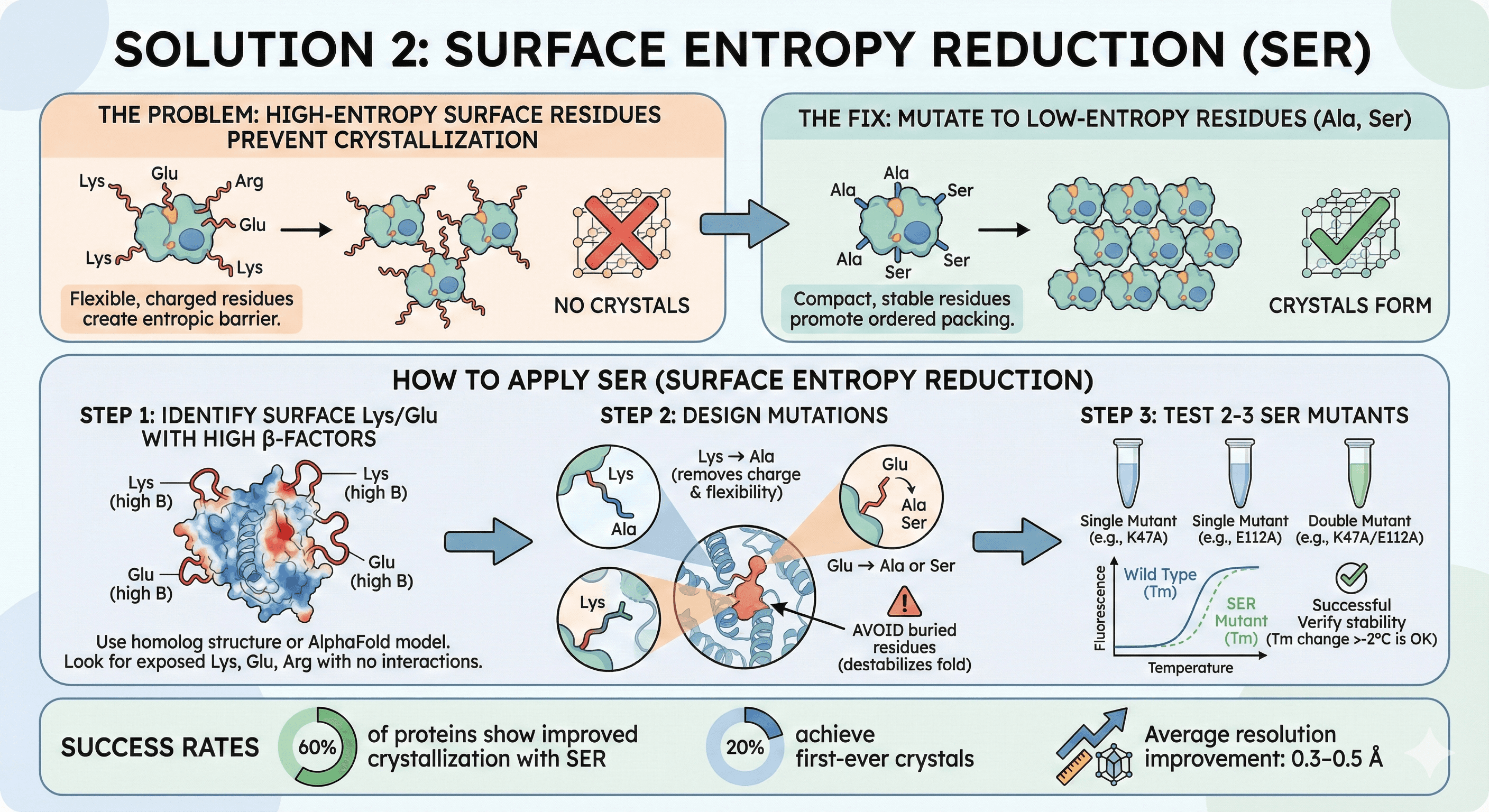

Solution 2: Surface Entropy Reduction (SER)

The problem: High-entropy surface residues (Lys, Glu, Arg) prevent crystallization.

The fix: Mutate to low-entropy residues (Ala, Ser).

How to Apply SER

Step 1: Identify surface Lys/Glu with high B-factors

Use structure of homolog or AlphaFold model
Look for Lys, Glu, Arg on surface with no obvious interactions

Step 2: Design mutations

Lys → Ala (removes charge and flexibility)
Glu → Ala or Ser
Avoid buried residues (destabilizes fold)

Step 3: Test 2-3 SER mutants

Single mutations: K47A, E112A
Double mutant: K47A/E112A
Verify stability (Tm should not decrease >2°C)

Success rates:

60% of proteins show improved crystallization with SER
20% achieve first-ever crystals
Average resolution improvement: 0.3-0.5 Å

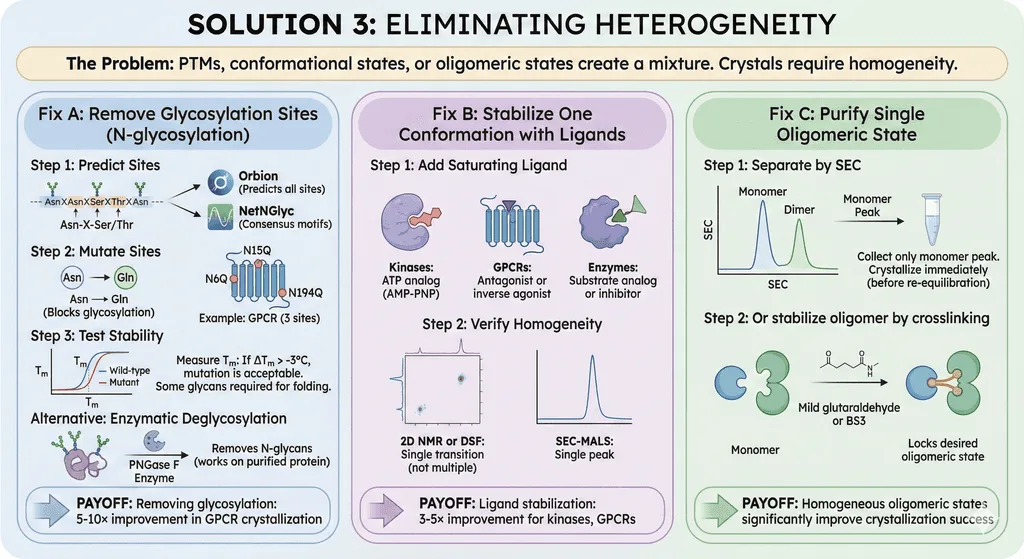

Solution 3: Eliminating Heterogeneity

The problem: PTMs, conformational states, or oligomeric states create a mixture.

Fix A: Remove Glycosylation Sites

For N-glycosylation (Asn-X-Ser/Thr motifs):

Step 1: Predict sites

Use Orbion (predicts all glycosylation sites)
Or NetNGlyc (free, consensus motifs only)

Step 2: Mutate sites

Asn → Gln (blocks glycosylation, conservative mutation)
Example: GPCR with 3 sites (N6Q, N15Q, N194Q)

Step 3: Test stability

Some glycans are required for folding
Measure Tm: If ΔTm > -3°C, mutation is acceptable

Alternative: Enzymatic deglycosylation

PNGase F: Removes N-glycans (works on purified protein)
Treat protein, then crystallize deglycosylated form

Impact:

Removing glycosylation: 5-10× improvement in GPCR crystallization

Fix B: Stabilize One Conformation with Ligands

For proteins in multiple conformational states:

Step 1: Add saturating ligand

Kinases: ATP analog (AMP-PNP)
GPCRs: Antagonist or inverse agonist
Enzymes: Substrate analog or inhibitor

Step 2: Verify homogeneity

2D NMR or DSF: Should see single transition (not multiple)
SEC-MALS: Single peak

Impact:

Ligand stabilization: 3-5× improvement for kinases, GPCRs

Fix C: Purify Single Oligomeric State

For proteins in monomer-dimer equilibrium:

Step 1: Separate by SEC

Collect only monomer peak
Crystallize immediately (before re-equilibration)

Step 2: Or stabilize oligomer by crosslinking

Mild glutaraldehyde or BS3
Locks desired oligomeric state

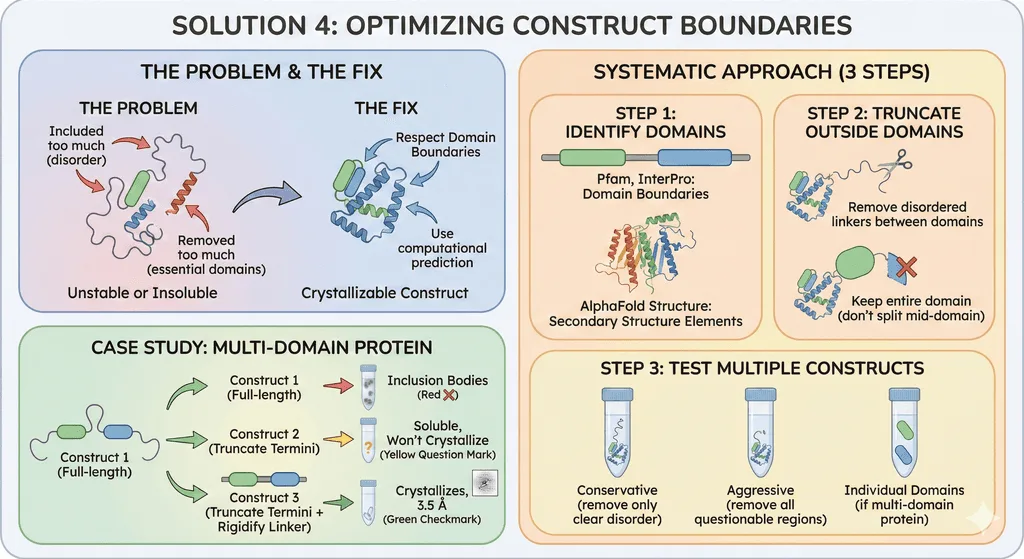

Solution 4: Optimizing Construct Boundaries

The problem: Included too much (disorder) or removed too much (essential domains).

The fix: Respect domain boundaries, use computational prediction.

Systematic Approach

Step 1: Identify domains

Pfam, InterPro: Domain boundaries
AlphaFold structure: Secondary structure elements

Step 2: Truncate outside domains

Remove disordered linkers between domains
Keep entire domain (don't split mid-domain)

Step 3: Test multiple constructs

Conservative (remove only clear disorder)
Aggressive (remove all questionable regions)
Individual domains (if multi-domain protein)

Case study: Multi-domain protein

Construct 1 (full-length): Inclusion bodies
Construct 2 (truncate termini): Soluble, won't crystallize
Construct 3 (truncate termini + rigidify linker): Crystallizes, 3.5 Å

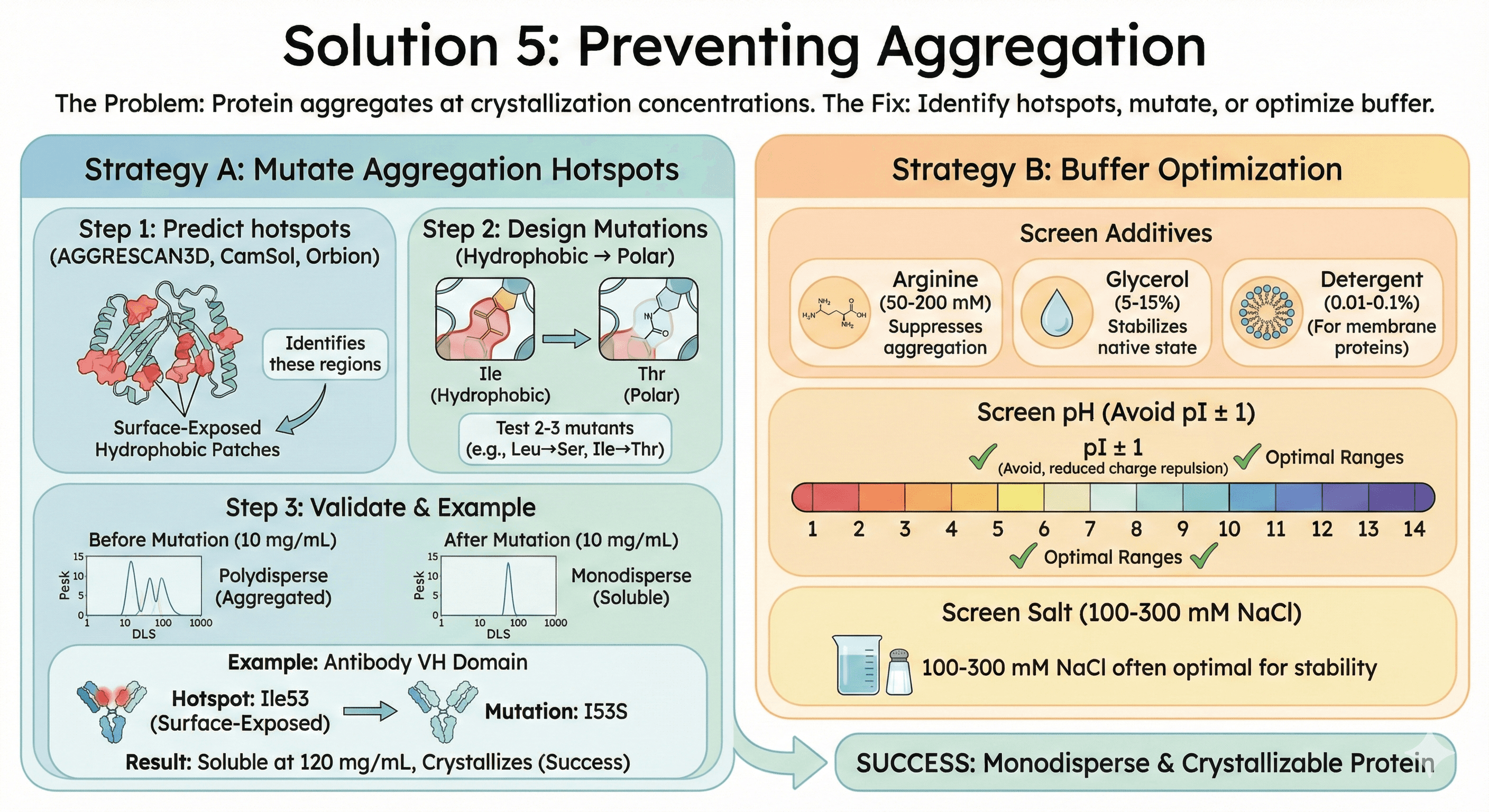

Solution 5: Preventing Aggregation

The problem: Protein aggregates at crystallization concentrations.

The fix: Identify hotspots, mutate, or optimize buffer.

Strategy A: Mutate Aggregation Hotspots

Step 1: Predict hotspots

AGGRESCAN3D, CamSol, or Orbion
Identifies surface-exposed hydrophobic patches

Step 2: Design mutations

Hydrophobic → Polar: Leu→Ser, Ile→Thr
Test 2-3 mutants

Step 3: Validate

DLS at 10 mg/mL: Should be monodisperse
Crystallization trials

Example: Antibody VH domain

Problem: Aggregates above 50 mg/mL
Hotspot: Ile53 in CDR2 (surface-exposed)
Mutation: I53S
Result: Soluble at 120 mg/mL, crystallizes

Strategy B: Buffer Optimization

Screen additives:

Arginine (50-200 mM): Suppresses aggregation
Glycerol (5-15%): Stabilizes native state
Detergent (0.01-0.1% for membrane proteins)

Screen pH:

Avoid pI ± 1 pH unit (reduced charge repulsion)

Screen salt:

100-300 mM NaCl often optimal

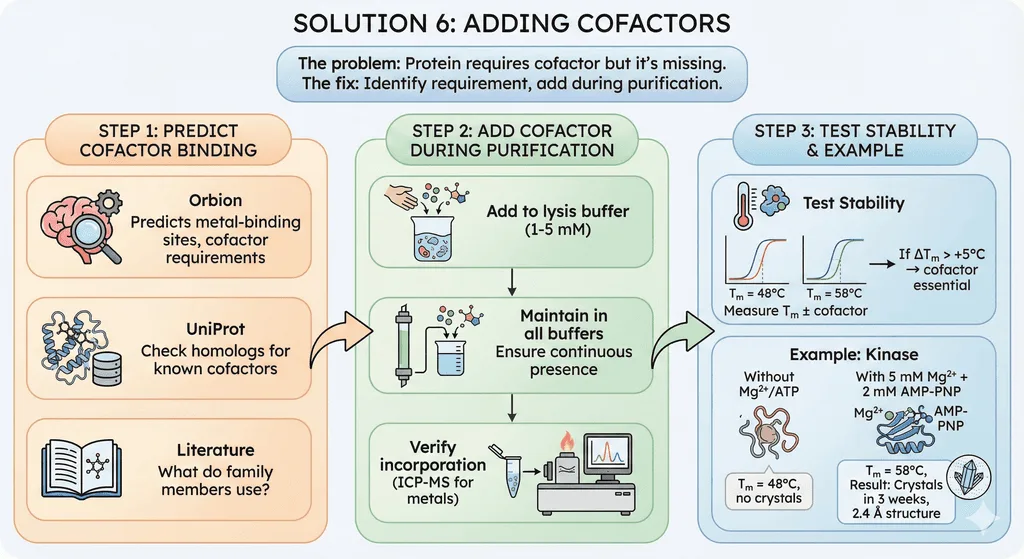

Solution 6: Adding Cofactors

The problem: Protein requires cofactor but it's missing.

The fix: Identify requirement, add during purification.

How to Fix

Step 1: Predict cofactor binding

Orbion: Predicts metal-binding sites, cofactor requirements
UniProt: Check homologs
Literature: What do family members use?

Step 2: Add cofactor during purification

Add to lysis buffer (1-5 mM)
Maintain in all buffers
Verify incorporation (ICP-MS for metals)

Step 3: Test stability

Measure Tm ± cofactor
If ΔTm > +5°C → cofactor essential

Example: Kinase

Without Mg²⁺/ATP: Tm = 48°C, no crystals
With 5 mM Mg²⁺ + 2 mM AMP-PNP: Tm = 58°C
Result: Crystals in 3 weeks, 2.4 Å structure

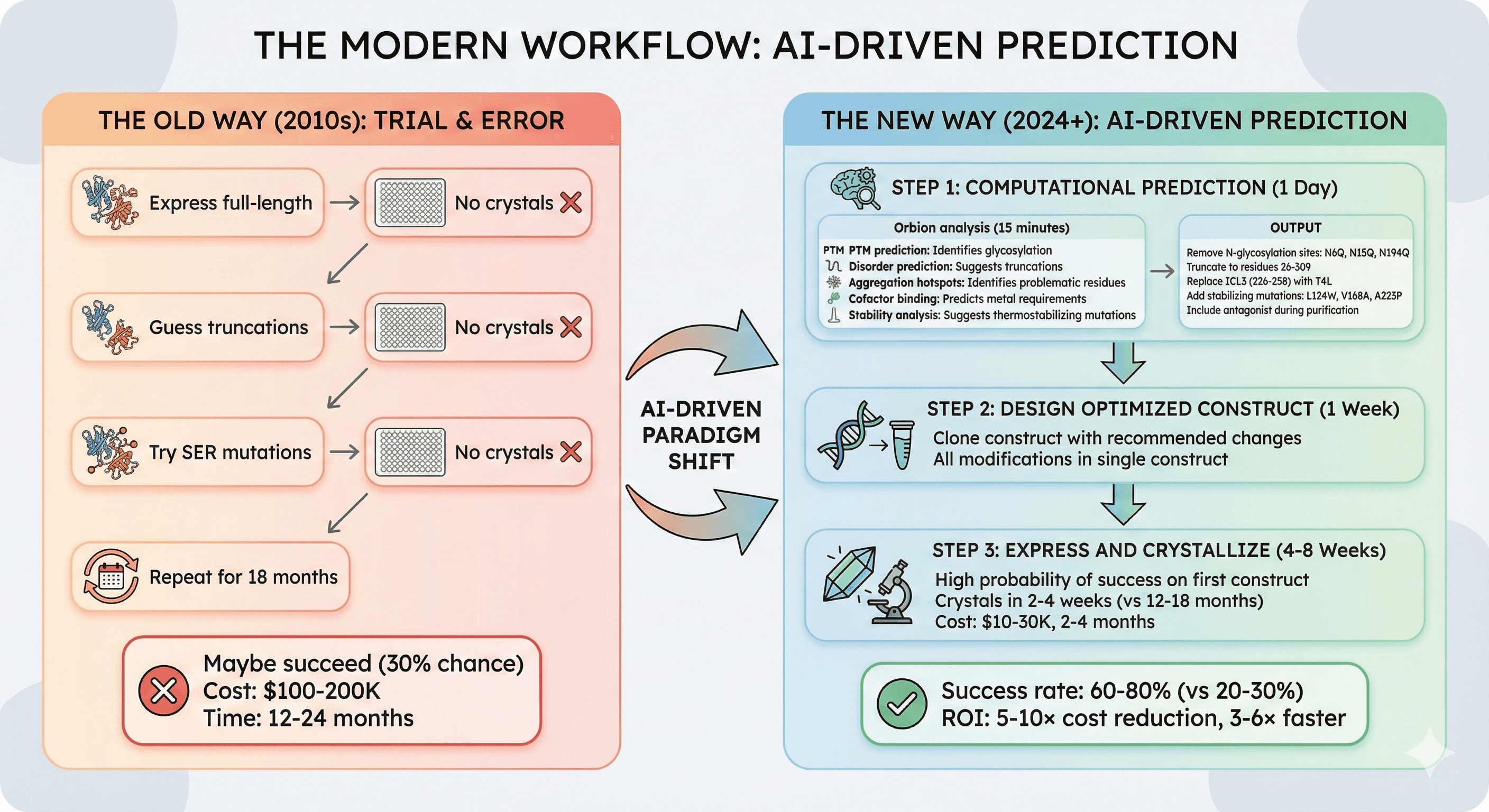

The Modern Workflow: AI-Driven Prediction

The old way (2010s):

Express full-length → No crystals
Guess truncations → No crystals
Try SER mutations → No crystals
Repeat for 18 months
Maybe succeed (30% chance)

Cost: $100-200K, 12-24 months

The new way (2024+):

Step 1: Computational Prediction (1 Day)

Orbion analysis (15 minutes):

PTM prediction: Identifies glycosylation causing heterogeneity
Disorder prediction: Suggests truncation boundaries
Aggregation hotspots: Identifies problematic residues
Cofactor binding: Predicts metal requirements
Stability analysis: Suggests thermostabilizing mutations

Output:

"Remove N-glycosylation sites: N6Q, N15Q, N194Q"
"Truncate to residues 26-309"
"Replace ICL3 (residues 226-258) with T4L"
"Add stabilizing mutations: L124W, V168A, A223P"
"Include antagonist during purification"

Step 2: Design Optimized Construct (1 Week)

Clone construct with recommended changes
All modifications in single construct

Step 3: Express and Crystallize (4-8 Weeks)

High probability of success on first construct
Crystals in 2-4 weeks (vs 12-18 months traditional)

Cost: $10-30K, 2-4 months

Success rate: 60-80% (vs 20-30% traditional)

ROI: 5-10× cost reduction, 3-6× faster

Case Study: Rescuing an "Uncrystallizable" GPCR

The Challenge

Target: Orphan GPCR (therapeutic target)

Traditional attempts (2015-2017):

Construct: Full-length (1-348)
Expression: Sf9 insect cells, low yield (0.5 mg/L)
Tm: 42°C (very unstable)
Crystallization: 3,000+ conditions over 18 months, no crystals
Cost: $250K, 2 years
Result: Project shelved as "uncrystallizable"

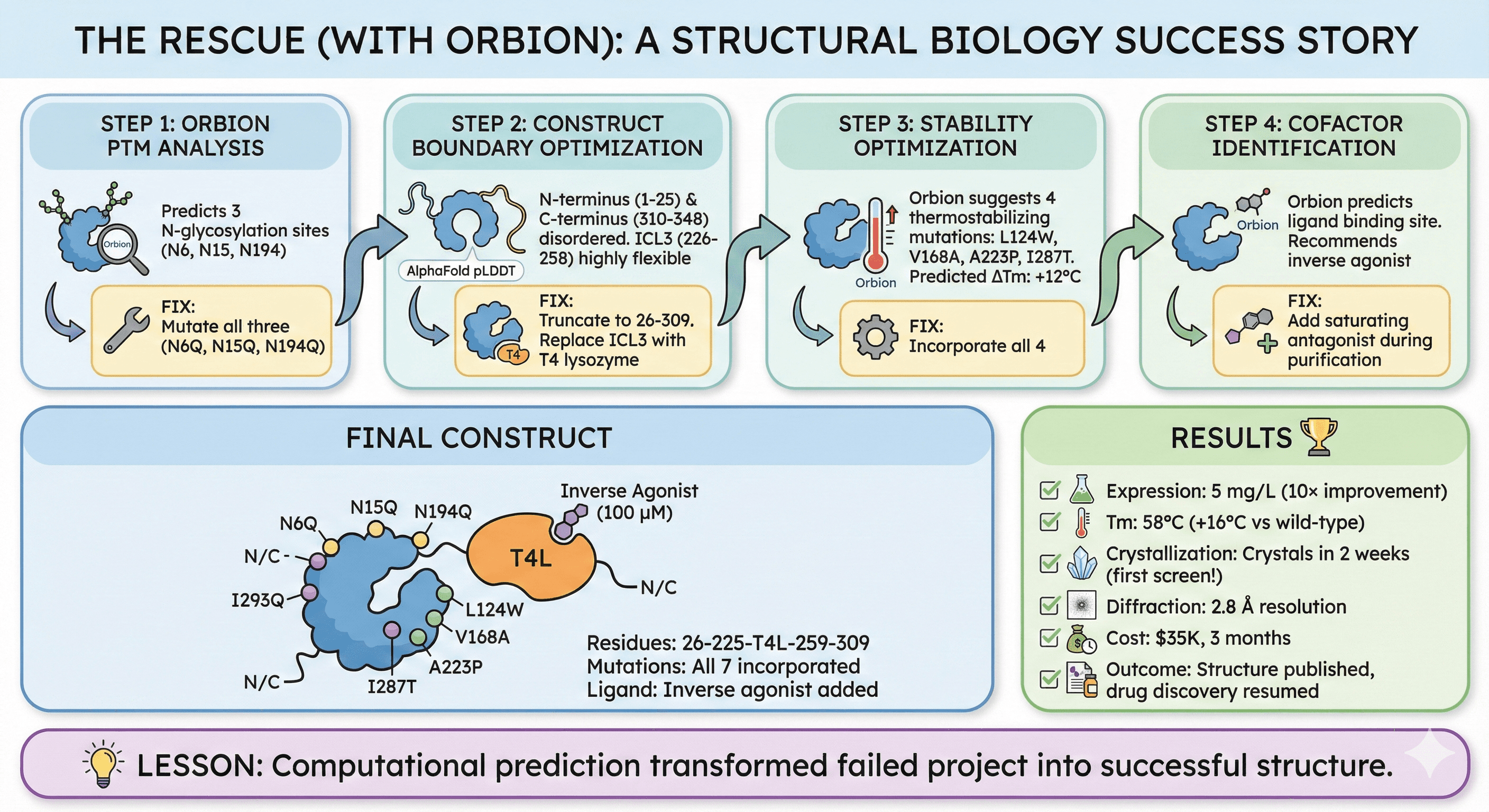

The Rescue (with Orbion)

Step 1: Orbion PTM analysis

Predicts 3 N-glycosylation sites (N6, N15, N194)
Fix: Mutate all three (N6Q, N15Q, N194Q)

Step 2: Construct boundary optimization

AlphaFold pLDDT: N-terminus (1-25) and C-terminus (310-348) disordered
ICL3 (226-258) highly flexible
Fix:
- Truncate to 26-309
- Replace ICL3 with T4 lysozyme

Step 3: Stability optimization

Orbion suggests 4 thermostabilizing mutations:
- L124W, V168A, A223P, I287T
Predicted ΔTm: +12°C
Fix: Incorporate all 4

Step 4: Cofactor identification

Orbion predicts ligand binding site
Recommends inverse agonist
Fix: Add saturating antagonist during purification

Final Construct

Residues: 26-225-T4L-259-309
Mutations: N6Q, N15Q, N194Q, L124W, V168A, A223P, I287T
Ligand: Inverse agonist (100 μM)

Results

Expression: 5 mg/L (10× improvement)
Tm: 58°C (+16°C vs wild-type)
Crystallization: Crystals in 2 weeks (first screen!)
Diffraction: 2.8 Å resolution
Cost: $35K, 3 months
Outcome: Structure published, drug discovery resumed

Lesson: Computational prediction transformed failed project into successful structure.

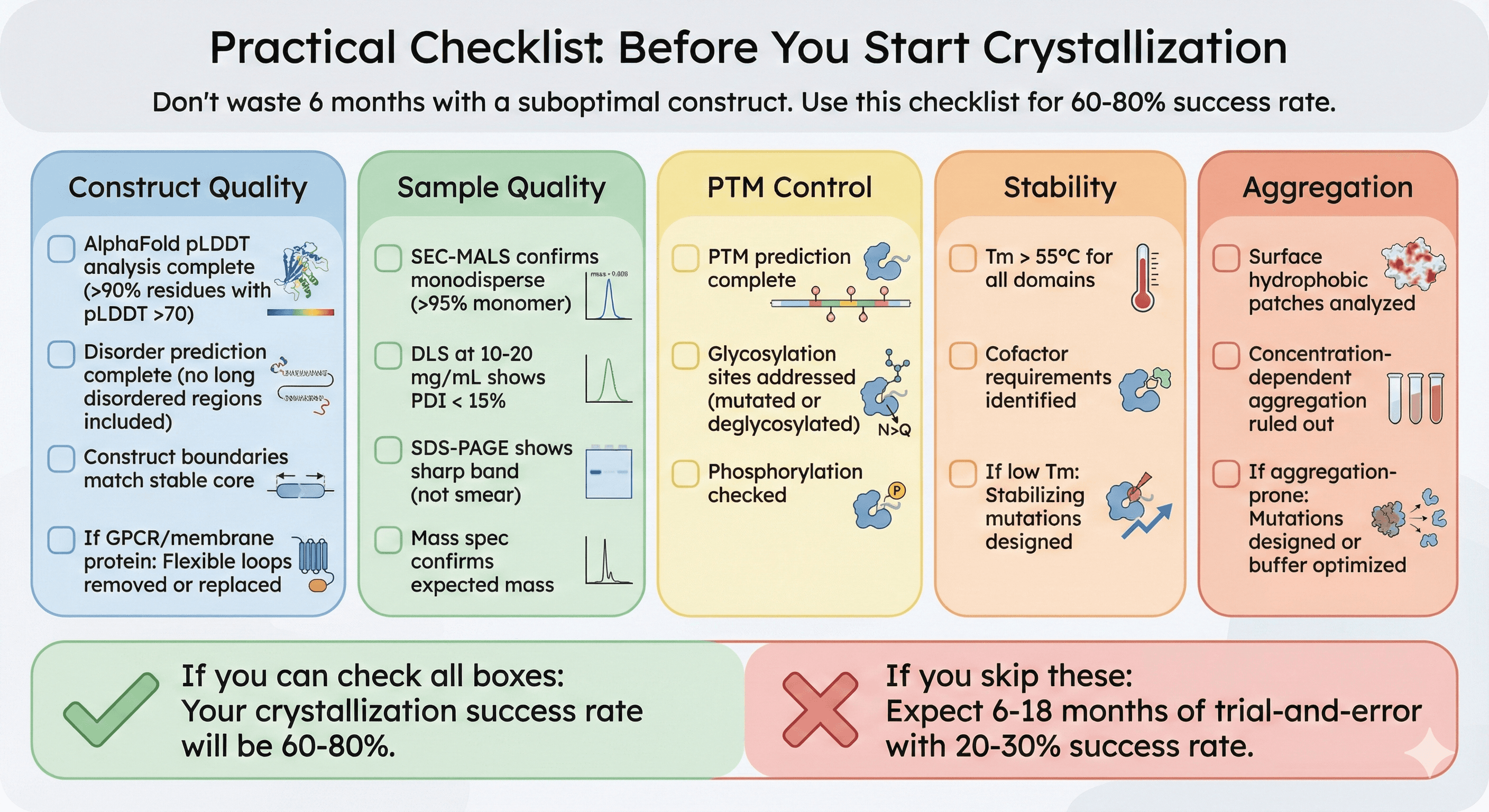

Practical Checklist: Before You Start Crystallization

Don't waste 6 months setting up screens with a suboptimal construct. Use this checklist:

☐ Construct Quality

[ ] AlphaFold pLDDT analysis complete (>90% residues with pLDDT >70)
[ ] Disorder prediction complete (no long disordered regions included)
[ ] Construct boundaries match stable core
[ ] If GPCR/membrane protein: Flexible loops removed or replaced

☐ Sample Quality

[ ] SEC-MALS confirms monodisperse (>95% monomer)
[ ] DLS at 10-20 mg/mL shows PDI < 15%
[ ] SDS-PAGE shows sharp band (not smear)
[ ] Mass spec confirms expected mass

☐ PTM Control

[ ] PTM prediction complete
[ ] Glycosylation sites addressed (mutated or deglycosylated)
[ ] Phosphorylation checked

☐ Stability

[ ] Tm > 55°C for all domains
[ ] Cofactor requirements identified
[ ] If low Tm: Stabilizing mutations designed

☐ Aggregation

[ ] Surface hydrophobic patches analyzed
[ ] Concentration-dependent aggregation ruled out
[ ] If aggregation-prone: Mutations designed or buffer optimized

If you can check all boxes: Your crystallization success rate will be 60-80%.

If you skip these: Expect 6-18 months of trial-and-error with 20-30% success rate.

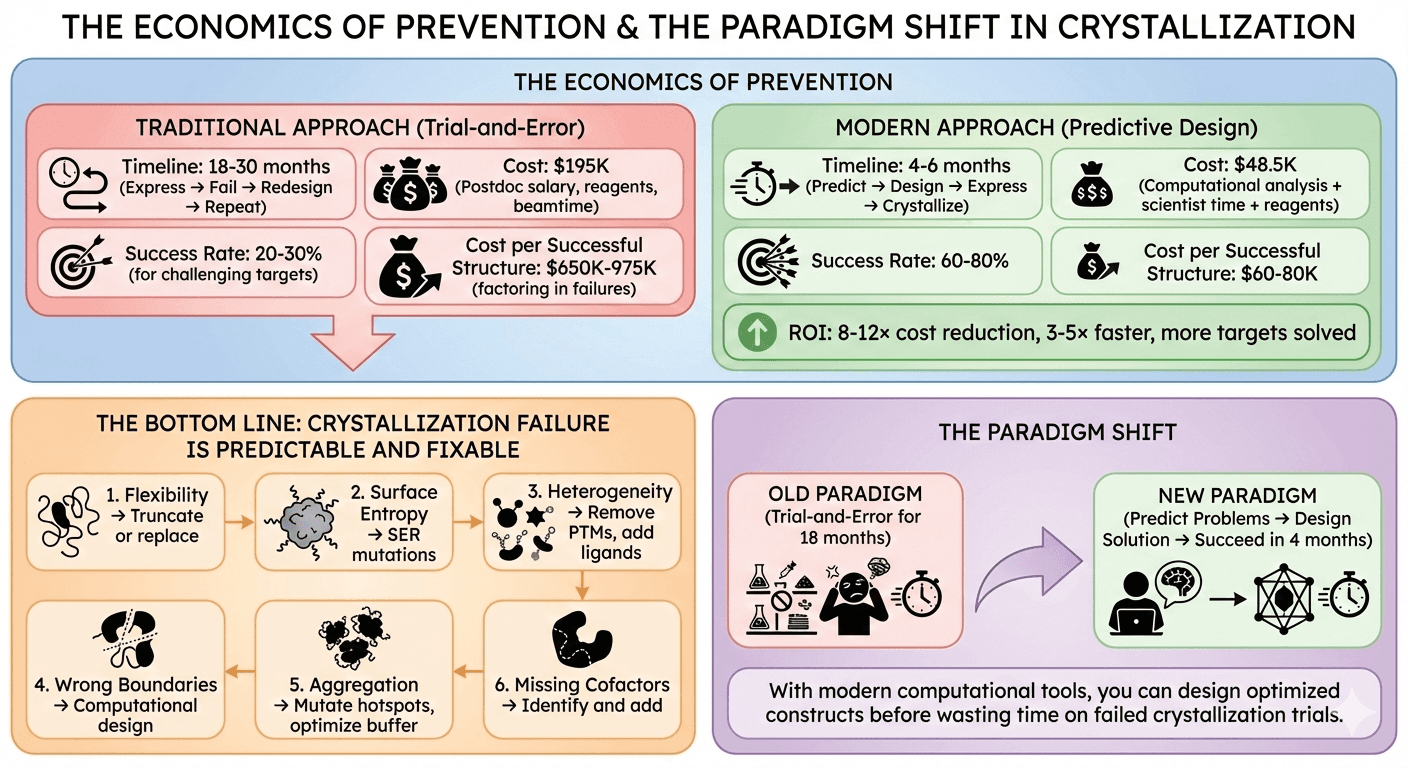

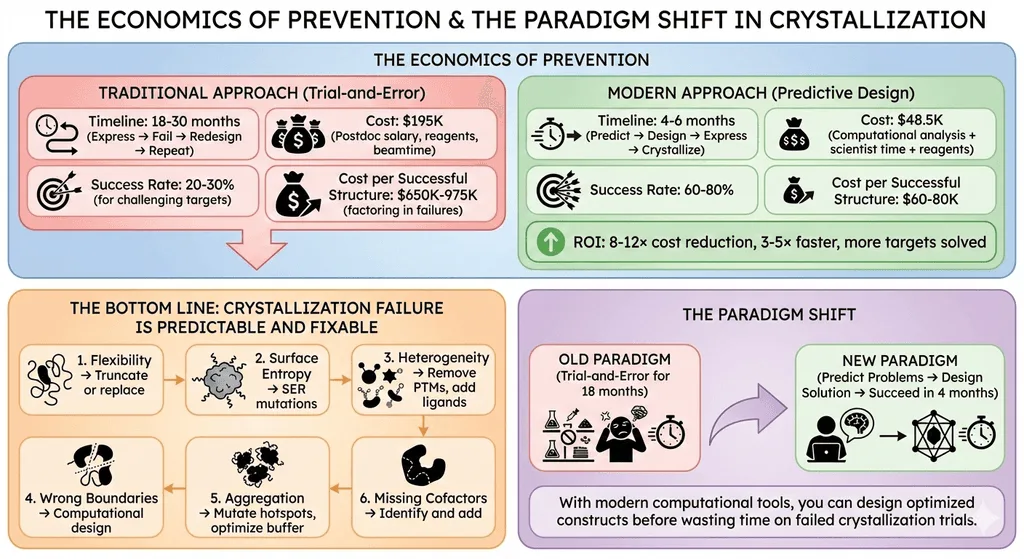

The Economics of Prevention

Traditional Approach

Timeline: 18-30 months (express → fail → redesign → repeat) Cost: $195K (postdoc salary, reagents, beamtime) Success rate: 20-30% for challenging targets Cost per successful structure: $650K-975K (factoring in failures)

Modern Approach

Timeline: 4-6 months (predict → design → express → crystallize) Cost: $48.5K (computational analysis + scientist time + reagents) Success rate: 60-80% Cost per successful structure: $60-80K

ROI: 8-12× cost reduction, 3-5× faster, more targets solved

The Bottom Line

Crystallization failure is predictable and fixable.

The 6 failure modes:

Flexibility → Truncate or replace
Surface entropy → SER mutations
Heterogeneity → Remove PTMs, add ligands
Wrong boundaries → Computational design
Aggregation → Mutate hotspots, optimize buffer
Missing cofactors → Identify and add

The paradigm shift:

Old: Trial-and-error for 18 months
New: Predict problems → Design solution → Succeed in 4 months

With modern computational tools, you can design optimized constructs before wasting time on failed crystallization trials.

Ready to Optimize Your Crystallization Construct?

If your protein won't crystallize, Orbion can identify why and suggest fixes—in minutes, not months.

Orbion provides:

Complete PTM landscape (identify glycosylation causing heterogeneity)
Construct boundary recommendations (optimal truncation points)
Cofactor binding prediction (what's missing?)
Aggregation hotspot identification with mutations
Stability optimization (thermostabilizing mutations)

From sequence to optimized construct design in <1 day.
