Rigid or Flexible? How to Choose the Linker Between Your Tag and Your Protein

Your fusion expresses beautifully. The gel shows a crisp band at the right size, the His-tag pulls it down cleanly, and yield is high. Then you run the activity assay and the numbers are dead. Or the mirror-image problem: your bifunctional construct works, but only barely, because the two domains keep bumping into each other and half your molecules are folded into a useless clump. You changed the tag. You changed the fusion partner. You changed the expression host. What you never changed was the handful of residues between the parts, the linker, and that is almost certainly where the problem lives.

The linker is the most overlooked component in construct design. Most people copy whatever (GGGGS) sequence their plasmid came with and move on. But the choice between a flexible linker and a rigid one, and how long to make it, controls whether your domains fold independently, whether your target keeps its activity, whether the protease can reach its site, and whether a therapeutic fusion triggers an immune response. Get it wrong and no amount of buffer optimization will save you.

Key Takeaways

Flexible linkers (GGGGS repeats, GS-rich) give domains freedom to move and fold independently. Use them when the two parts must not constrain each other, or when a protease needs to reach a cleavage site.
Rigid linkers (EAAAK helical repeats, Pro-rich) hold domains apart at a fixed distance and orientation. Use them when a flexible tether lets the domains foul each other or when you need to preserve inter-domain spacing.
Length matters as much as composition. Single-chain constructs need linkers of at least 11 residues to fold and function, with stability often peaking around a longer glycine-rich span (Robinson & Sauer, 1998).
Flexible glycine-rich linkers are more protease-susceptible and can pick up unexpected modifications, which matters for stability and for therapeutic immunogenicity.
A helical rigid linker can raise expression. Inserting an A(EAAAK)nA linker increased fusion-protein expression up to 2.4-fold in one systematic study (Amet et al., 2009).
There is no default. The right linker depends on whether your problem is "the domains crowd each other" or "the domains are too constrained."

Introduction

A linker is a short peptide, typically 2 to 30 residues, that joins two parts of a fusion protein: a tag to your target, a solubility partner to your protein, or two functional domains to each other. It sounds trivial. It is not.

Nature has been designing linkers for a long time. When Argos (1990) extracted 51 oligopeptides that connect domains in solved protein structures, clear patterns emerged: natural linkers have characteristic composition, conformation, and flexibility, and they are enriched in specific residues. George and Heringa (2002) analyzed natural domain linkers further and found they fall into two structural classes: helical linkers that act as rigid spacers, and non-helical linkers, often proline-rich, that isolate the linker from the domains it connects. They also grouped linkers by size into small (around 4 residues), medium (around 9), and large (around 21 residues).

Engineered linkers borrow from both. The review by Chen, Zaro and Shen (2013) organizes them into three practical categories: flexible linkers (glycine-serine repeats), rigid linkers (helical EAAAK repeats or proline-rich sequences), and in vivo cleavable linkers (which release the two parts inside cells or serum). This guide focuses on the first two, the ones you actually pick from a library when you build a construct.

This post stays in the "what goes between the parts" lane. Choosing which fusion partner to attach is a separate decision, covered in our fusion partner selection guide (MBP vs SUMO vs GST vs thioredoxin). Where to put the tag, N-terminus versus C-terminus, is covered in our tag placement post. Here we assume you have picked your parts and now have to connect them.

What a Linker Actually Does

Strip away the biochemistry and a linker manages a single tension: coupling versus independence.

Two protein domains joined directly, with no linker at all, behave as one rigid object. That is sometimes fine and sometimes catastrophic. If the C-terminus of domain A sits right against the active site of domain B, a direct fusion buries that active site. The tag ends up shielding the very function you are trying to measure.

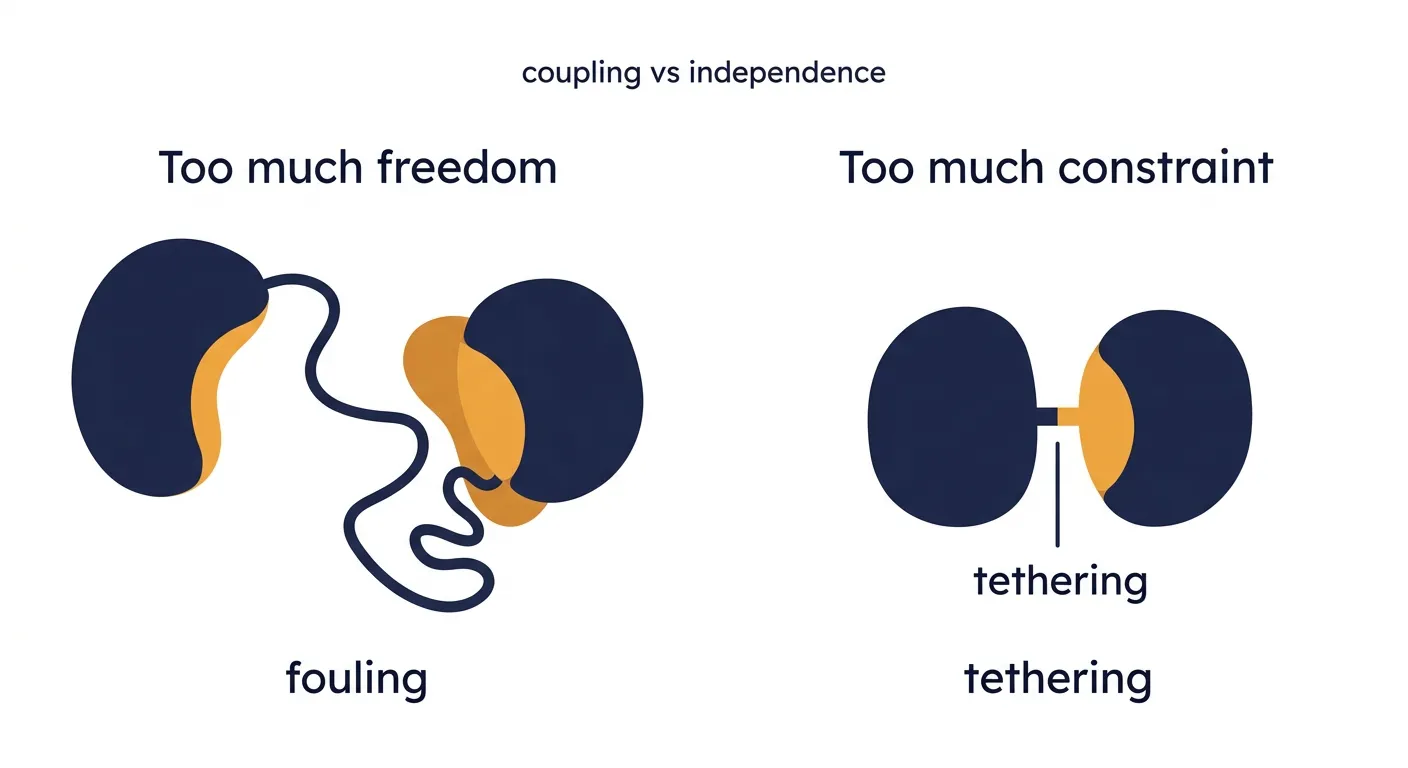

Add a linker and you buy separation. But now you face two opposing failure modes:

Too much freedom (the fouling problem). A long, floppy linker lets the two domains collide, wrap around each other, and sample conformations where one interferes with the other. In a bifunctional enzyme this can suppress one or both activities. In a biosensor it scrambles the readout.
Too much constraint (the tethering problem). A short or stiff linker holds the domains so close, or in such a fixed relative orientation, that they cannot fold or act independently. The tag distorts the target. The domains cannot both reach their substrates.

Every linker decision is a bet about which of these two failures is the bigger risk for your specific construct. Flexible linkers solve constraint problems. Rigid linkers solve fouling problems.

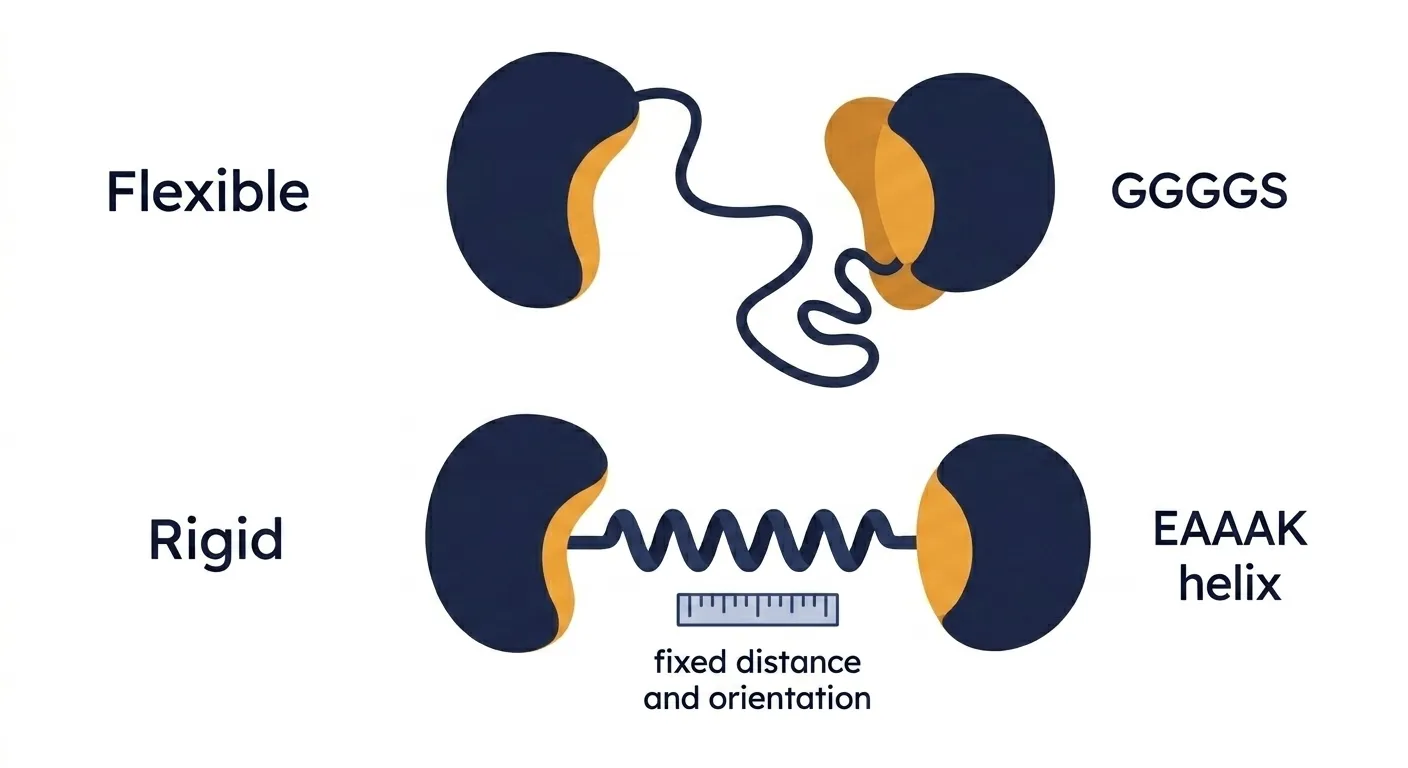

Flexible Linkers: GGGGS, (G4S)n, and GS-Rich Sequences

The workhorse flexible linker is (GGGGS)n, usually written (G4S)n, with n typically 1 to 4. Glycine has no side chain, so it grants the backbone maximum rotational freedom. Serine is small and polar, keeping the linker soluble and hydrated so it does not stick to either domain.

What flexible linkers do well:

Grant domain independence. The floppy tether lets each domain tumble and fold on its own, which is exactly what you want when you fear the tag or partner will distort your target.
Behave predictably as chains. Van Rosmalen, Krom and Merkx (2017) measured GS linkers from 25 to 73 residues by FRET and showed they act like well-behaved polymer chains whose end-to-end distance depends on length and glycine content. This makes flexible linkers the right tool when you need a tunable spacer rather than a fixed one.
Keep cleavage sites accessible. A flexible span around a protease site is one of the most reliable fixes for cleavage failure, because the enzyme needs room to bind (more on this below).

Where flexible linkers fail:

They let domains foul each other. The same freedom that protects folding also allows collisions. For constructs where the two parts must stay apart, flexibility is a liability.
They are proteolytically exposed. Extended, solvent-accessible glycine-rich sequences are easy targets for host proteases. A linker that gets clipped during expression fragments your fusion.
They can be surprisingly variable. In a therapeutic, a flexible junction is a region of conformational and chemical heterogeneity, which complicates characterization and can raise immunogenicity concerns.

Flexible linkers are the correct starting point when your worry is "the tag will crowd my protein" and your downstream application tolerates some flexibility.

Rigid Linkers: EAAAK Helical Repeats and Proline-Rich Spacers

Rigid linkers do the opposite job: they hold two domains apart at a defined distance and, in the case of helical linkers, a defined relative orientation.

The best-characterized rigid linker is the alpha-helix-forming A(EAAAK)nA motif. Arai and colleagues (2001) inserted A(EAAAK)nA linkers (n = 2 to 5) between two fluorescent proteins and showed by circular dichroism that the linkers form stable alpha-helices, with helical content rising as the linker lengthened. FRET between the two fluorophores fell steadily with linker length, direct evidence that the helix acts as a rigid molecular ruler, pushing the domains apart by a predictable amount per turn. The glutamate and lysine residues form stabilizing i, i+4 salt bridges that lock the helix in place.

The other rigid family is proline-rich sequences, such as (XP)n repeats. Proline's ring restricts backbone rotation and disrupts hydrogen bonding to neighboring residues, so a Pro-rich linker behaves as a stiff, extended spacer that isolates each domain (George & Heringa, 2002).

What rigid linkers do well:

Prevent domain fouling. By fixing the separation, a rigid linker stops the two parts from collapsing onto each other. Reddy Chichili, Kumar and Sivaraman (2013) note that most natural rigid linkers exist precisely to prohibit unwanted interactions between domains.
Preserve activity of both parts. When each domain has room to work, bifunctional constructs retain more of each activity.
Can improve expression and stability. Amet, Lee and Shen (2009) inserted a helical (EAAAK)-based linker into transferrin fusion proteins and saw expression rise 1.7- to 2.4-fold, with a twofold lower ED50 (higher potency), compared with the same fusion lacking the helical linker.

Where rigid linkers fail:

They enforce one geometry. If your domains actually need to move relative to each other, a rigid linker locks them into a pose that may not work.
Pro-rich linkers can be immunogenic and are less predictable in length-to-distance scaling than helical linkers.

Rigid linkers are the correct choice when your worry is "the two parts will interfere with each other" and you want to control the spacing between them.

The Semi-Rigid Middle Ground

Real constructs are not always a clean choice between floppy and stiff. Semi-rigid linkers occupy the middle: sequences that resist collapse without enforcing a single fixed geometry. Examples include short helical segments flanked by a few flexible residues, or alternating rigid and flexible blocks.

The design logic is straightforward. A flexible cap at each end lets the linker meet the domains without strain, while a structured core provides some separation and reduces fouling. Klein and colleagues (2014) built and characterized structured linkers spanning a range of flexibilities, demonstrating that flexibility is a dial you can turn, not a binary switch.

In practice, semi-rigid linkers are the pragmatic hedge when you are unsure whether fouling or constraint is your bigger risk. Orbion's component library includes semi-rigid variants alongside the flexible and rigid families for exactly this reason.

Domain Independence and Inter-Domain Distance

The central design variable a linker controls is the distance and freedom between the two domains. This is not abstract. It has measurable consequences.

The Arai FRET experiment is the cleanest demonstration: swap a floppy (G4S) linker for a helical A(EAAAK)nA linker of the same residue count and the average distance between domains increases and stops fluctuating. For a FRET biosensor, that changes your signal. For a bifunctional enzyme, it changes whether both active sites are simultaneously available to substrate.

The practical rules:

If your two domains must reach the same substrate or surface simultaneously, you often need a longer, more flexible linker so both can orient freely.
If your two domains must not touch, a rigid linker of defined length keeps them at arm's length.
If you are fusing a small tag to a target and simply want the tag out of the way, a short flexible linker usually suffices; the goal is just to unbury the target's terminus.

As a general design heuristic, scale length to domain size: larger domains typically need longer linkers to clear each other.

Length Selection: The Variable Everyone Guesses

Composition gets the attention, but length is often the deciding factor, and it is the one people set by copying a template.

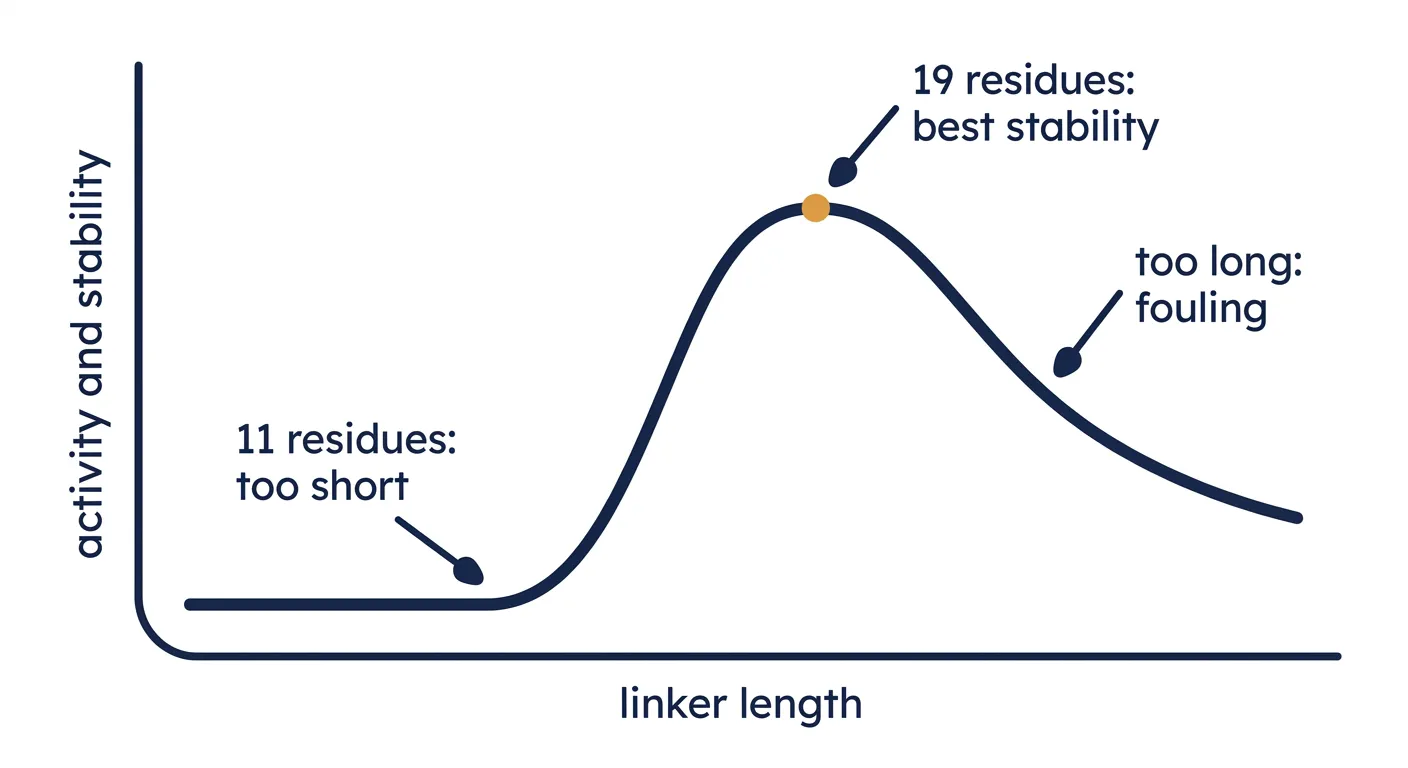

The definitive dataset comes from Robinson and Sauer (1998), who built libraries of single-chain Arc repressor with linkers of varying length and composition. Their findings:

Linkers shorter than 11 residues abolished biological activity. Below that threshold the domains could not adopt their functional arrangement.
Equilibrium stability peaked with glycine-rich linkers around 19 residues.
Composition, not exact sequence, determined stability. You do not need a magic sequence; you need the right character (flexible, soluble) and the right length.

The effective concentration of the tethered domains varied over six orders of magnitude across their linker series. That is the size of the lever you are pulling when you change linker length.

A working heuristic:

Goal	Starting length	Type
Unbury a terminus for a small tag	2 to 5 residues	Flexible (`GGS` to `GGGGS`)
Independent folding of tag and target	10 to 15 residues	Flexible (`(G4S)2` to `(G4S)3`)
Keep two domains apart (anti-fouling)	10 to 20 residues	Rigid (`A(EAAAK)2-4A`)
Large domains, both must function	15 to 25 residues	Flexible or semi-rigid

Treat these as first guesses to be tested, not final answers. Length is cheap to vary combinatorially, which is exactly the kind of sweep worth running in silico before you clone.

Solubility and Expression Effects

Linkers influence more than geometry. They affect whether your protein expresses solubly at all.

Flexible GS-rich linkers are hydrophilic and add solvent-exposed, well-behaved sequence between domains, which can modestly help keep a construct soluble. But the bigger and more surprising effect comes from rigid helical linkers: as Amet et al. (2009) showed, a helical linker can raise expression substantially, likely by promoting cleaner separation and folding of the two domains during synthesis. If your fusion expresses poorly and you suspect the two parts are interfering during folding, switching from a floppy to a helical linker is a rational move, not just a distance adjustment.

The flip side: linker composition can introduce liabilities. A linker sequence that inadvertently creates a hydrophobic patch, a cryptic aggregation-prone stretch, or a disorder-promoting region can hurt more than it helps. This is worth checking computationally before committing, because the linker is part of the assembled sequence your solubility and disorder predictors actually see.

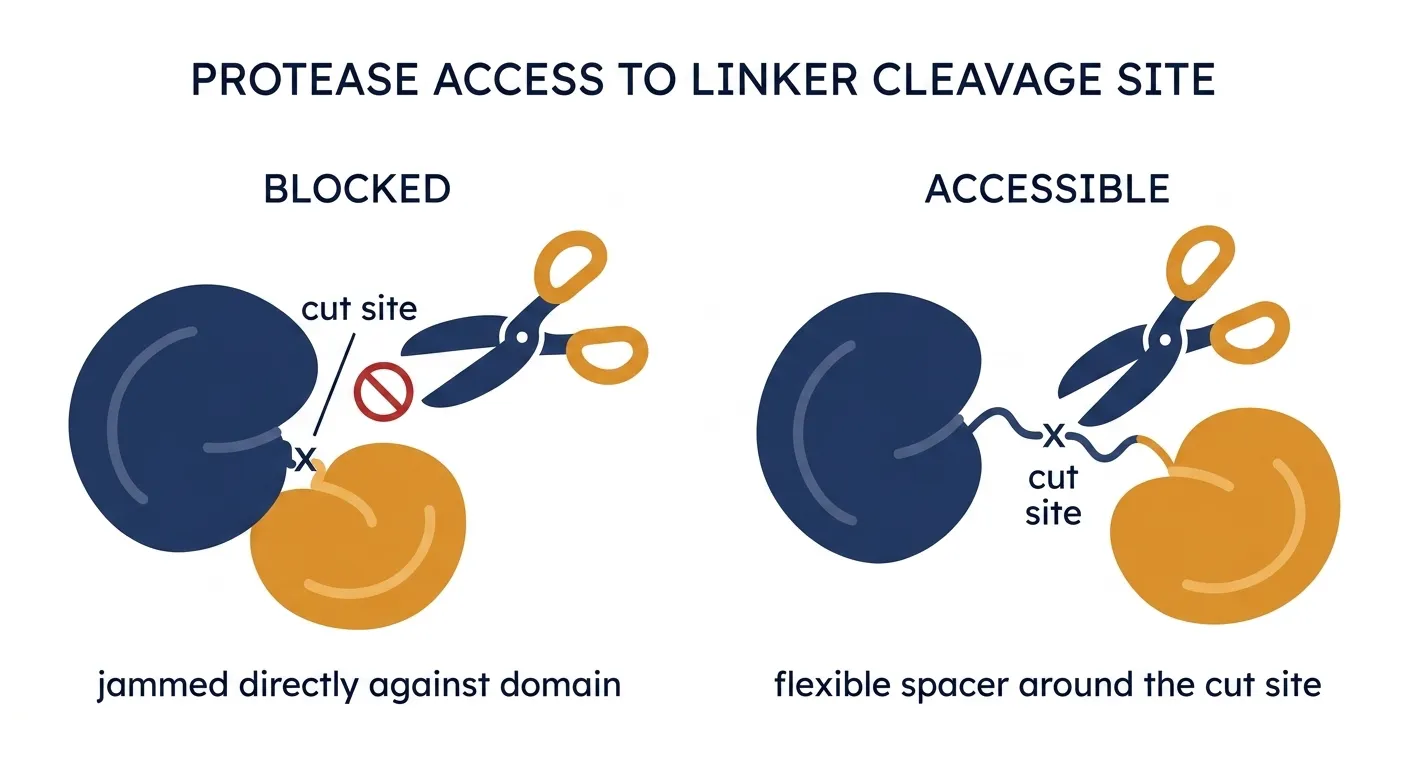

Protease Susceptibility and Cleavage-Site Accessibility

Flexible linkers cut both ways when proteases are involved, and the two effects point in opposite directions.

The problem: flexible linkers are protease bait. An extended, solvent-exposed glycine-rich sequence is an easy substrate for host proteases during expression. If your fusion shows up on a gel as multiple bands smaller than expected, a floppy linker getting clipped is a prime suspect. Rigid helical linkers, folded into a compact helix, present far less of a target.

The benefit: flexible linkers rescue cleavage. When you want a protease to cut, at a TEV or 3C site between your tag and target, the enzyme needs physical room to bind. A cleavage site jammed against a folded domain is sterically blocked. Flanking the site with a short flexible linker is one of the most reliable fixes for "my protease won't cut." We cover the full protease troubleshooting workflow in our tag removal post; the linker-relevant point is simple: put a flexible spacer around every engineered cleavage site, even when the rest of your construct uses a rigid linker.

So the guidance splits by intent. For a permanent fusion, avoid unnecessarily long flexible linkers that invite proteolysis. For a construct you plan to cleave, deliberately place flexibility at the cut site.

Immunogenicity: The Therapeutic Constraint

If your fusion is destined for the clinic, the linker becomes a safety consideration, not just a folding one.

Every linker creates two novel junctions, sequences that do not exist in any natural human protein. These non-native junctions can be processed and presented as T-cell epitopes, driving anti-drug antibody responses. Chen, Zaro and Shen (2013) discuss immunogenicity as a core design constraint for therapeutic fusion linkers.

Two practical considerations:

Flexible glycine-rich linkers are generally considered low-immunogenicity because of their simple, repetitive composition, which is part of why (G4S)n dominates approved bispecific and fusion therapeutics.
Flexible linkers can acquire unexpected post-translational modifications in mammalian expression. Because the linker is exposed and unstructured, it is accessible to modifying enzymes, and modifications on the linker introduce heterogeneity that complicates characterization and can create new epitopes.

For therapeutic constructs, the sensible defaults are to keep linkers as short as function allows, favor well-precedented flexible sequences, and screen the assembled junctions for predicted modification sites before committing.

Retention of Fusion-Partner and Target Activity

The whole point of most fusions is that both parts keep working: the solubility partner keeps you soluble, the tag keeps binding its resin, and the target keeps its native activity. The linker is what makes that possible, or impossible.

The failure pattern is consistent. Direct fusions and over-short linkers suppress activity by burying interfaces. Over-long flexible linkers suppress activity by allowing fouling. The sweet spot, retention of both activities, sits between them, and its exact location depends on the geometry of your specific domains.

This is why parallel testing beats guessing. When Robinson and Sauer (1998) scanned linker length and composition, activity and stability tracked in ways no one would have predicted from the sequences alone. The reliable path is to build a small panel spanning flexible and rigid options at a few lengths, score them, and let the data pick the winner rather than committing to a single construct on faith.

Case Study: A Bifunctional Reporter That Lost Both Functions

Problem. A team built a fusion of an enzyme domain and a fluorescent reporter, joined by the (GGGGS)3 linker that came with their vector. The construct expressed well and purified cleanly. But enzyme activity was roughly a third of the free enzyme, and reporter fluorescence was inconsistent from prep to prep. Swapping the tag and re-optimizing induction changed nothing. The two domains were fouling each other: the long flexible linker let the reporter fold back against the enzyme's active-site cleft, and the floppy junction also left the construct partly clipped by host proteases, explaining the batch-to-batch variability.

Solution. Rather than run another round of trial constructs at the bench, the team assembled a linker panel in silico. They kept the same enzyme and reporter and varied only the connector: the original (G4S)3, a shorter (G4S)1, a helical A(EAAAK)2A rigid linker, and an A(EAAAK)4A longer helical version, plus a semi-rigid variant. Each assembled construct was scored on solubility, disorder, aggregation, and predicted stability, and the assembled junctions were checked for exposed, modification-prone stretches. The helical A(EAAAK)2A construct stood out: it held the two domains apart at a defined distance, scored lower on predicted disorder at the junction (removing the protease-bait stretch), and, consistent with the helical-linker expression literature, carried no solubility or aggregation penalty.

Outcome. The A(EAAAK)2A construct recovered enzyme activity close to the free enzyme and gave consistent fluorescence across preparations. The clipping bands disappeared, because the compact helix no longer presented an exposed protease target. The team went from a single guessed construct to a rational winner without a month of serial cloning, having tested the geometry hypothesis, fouling versus constraint, before ordering a single oligo.

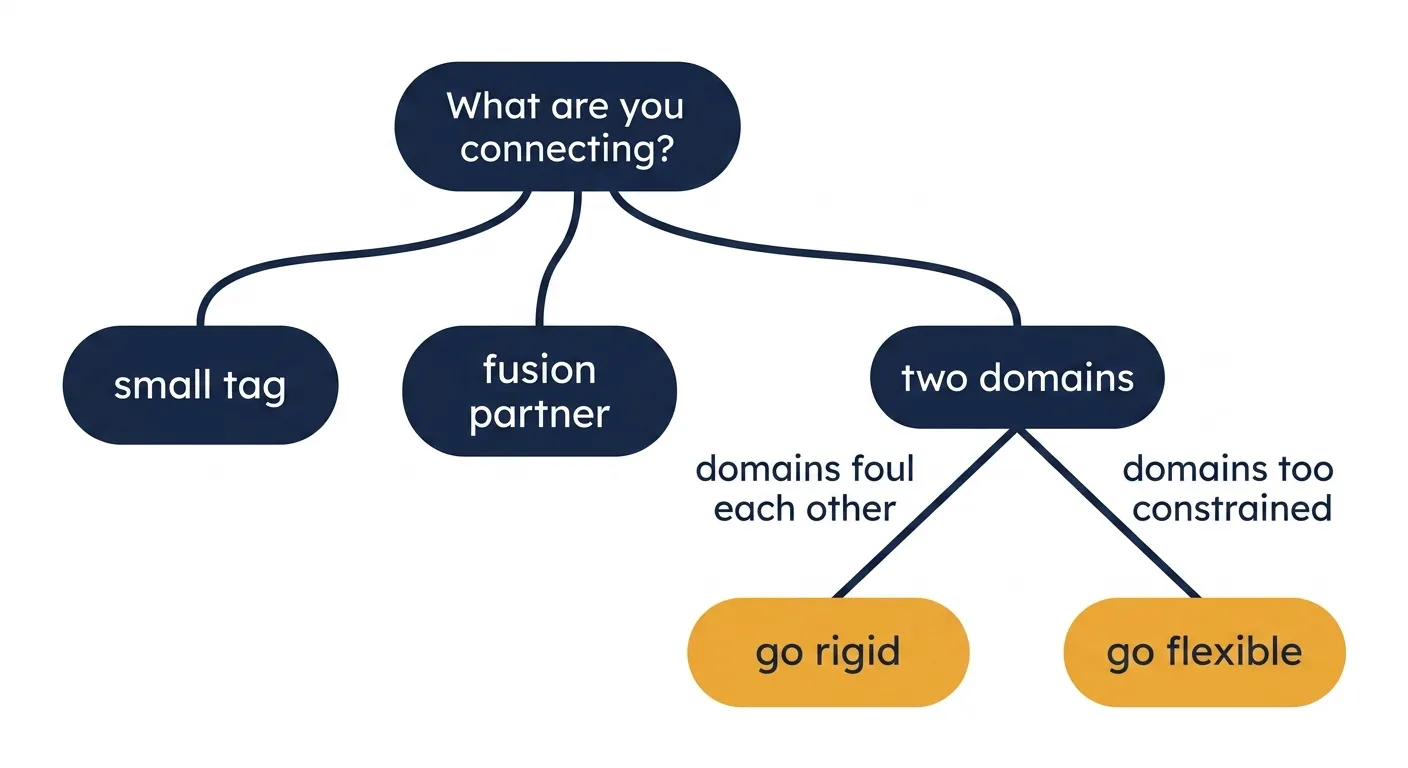

Practical Tools: The End-to-End Linker Decision Tree

Use this to go from "I have two parts" to a linker choice you can build.

START: What are you connecting?
│
├── A small purification/epitope tag to your target
│   │
│   ├── Do you plan to cleave the tag off later?
│   │   ├── YES → Flexible spacer around the cleavage site is mandatory.
│   │   │         Use: His6 - (GGS) - [protease site] - (GGS) - Target
│   │   │         (see tag removal post for protease choice)
│   │   └── NO  → Short flexible linker to unbury the terminus.
│   │             Use: 2-5 residues, GGS or GGGGS. Keep it short to
│   │             minimize proteolysis.
│   │
│   └── Is the tag distorting the target's terminus / activity?
│       └── YES → Lengthen to (G4S)2 for more independence,
│                 OR move the tag to the other terminus (see tag
│                 placement post).
│
├── A solubility/fusion partner to your target
│   │   (which partner? see fusion partner selection guide)
│   │
│   └── Default: (G4S)2 to (G4S)3 flexible linker so the partner
│       folds first and nucleates the target without constraining it.
│       If still insoluble, check whether the linker itself adds a
│       hydrophobic or disorder-prone stretch.
│
└── Two functional domains (bifunctional enzyme, biosensor,
    bispecific, scFv, etc.)
    │
    ├── STEP 1: Diagnose the dominant risk.
    │   ├── Domains likely to FOUL each other
    │   │   (both have exposed active sites / interfaces)
    │   │        → Start RIGID. A(EAAAK)2A to A(EAAAK)4A.
    │   │          Helical linker fixes distance and orientation.
    │   │
    │   └── Domains likely to be CONSTRAINED
    │       (both must reach the same substrate / move freely)
    │            → Start FLEXIBLE. (G4S)2 to (G4S)4.
    │
    ├── STEP 2: Set length.
    │   ├── Single-chain / both parts must function:
    │   │        ≥ 11 residues (Robinson & Sauer threshold).
    │   ├── Scale length to domain SIZE: larger domains → longer.
    │   └── Unsure → semi-rigid variant as the hedge.
    │
    ├── STEP 3: Screen the assembled sequence.
    │   ├── Check disorder / aggregation at the junctions.
    │   ├── Check for cryptic protease sites in the linker.
    │   └── If therapeutic: keep short, favor precedented flexible
    │            sequences, screen junctions for PTM/epitope liability.
    │
    └── STEP 4: Do not commit to one. Build a small panel
        (flexible + rigid + semi-rigid, at 2-3 lengths),
        score them, and let the data choose.

Design checklist before you clone:

Identified the dominant risk: fouling (go rigid) or constraint (go flexible)
Chose length ≥ 11 residues for any single-chain / dual-function construct
Placed a flexible spacer around every engineered cleavage site
Scored the assembled construct on solubility, disorder, and aggregation
Checked the linker for cryptic protease sites and (if therapeutic) modification-prone junctions
Built a panel rather than betting on a single linker

Economic Analysis

Linkers are the cheapest component in your construct and the most expensive one to get wrong.

The cost of guessing. Copy the vector's default linker, clone, express, purify, assay, and discover reduced activity or clipping. Diagnose (is it the tag? the host? the buffer?), which burns weeks because the linker is rarely the first suspect. Redesign, re-clone, re-express. A realistic timeline is 6 to 10 weeks and several hundred euros in synthesis and reagents per failed construct, with the real cost being the calendar time.

The cost of testing up front. A linker panel is almost free to design. Varying the connector across flexible, rigid, and semi-rigid options at a few lengths, while holding the tag, partner, and target constant, is a pure combinatorial sweep. Scoring those variants in silico and cloning only the top one or two collapses the 6-to-10-week guessing loop into a single successful build cycle.

The asymmetry is stark. The linker is a handful of codons. The wrong handful can cost a month per iteration. Any workflow that lets you evaluate linker options before committing DNA to synthesis pays for itself on the first construct it rescues.

The Bottom Line

Bottom line: the linker is a bet about coupling versus independence, and you should place that bet on purpose.

Flexible linkers ((G4S)n, GS-rich) grant freedom. Choose them when the tag or partner must not constrain your target, when both domains need to move to function, or when a protease needs room to cut. Their weaknesses are fouling and proteolytic exposure.
Rigid linkers (A(EAAAK)nA helical, Pro-rich) enforce distance and orientation. Choose them when the domains would otherwise foul each other, when you need controlled spacing, and when you want a possible expression boost. Their weakness is enforcing one geometry.
Semi-rigid linkers are the hedge when you cannot predict which failure dominates.
Length is not an afterthought. Stay at or above 11 residues for single-chain and dual-function constructs, and scale length to domain size.
Never commit to one linker on faith. Build a small panel, score it, and let the data choose.

The linker will not rescue a construct that needs a different fusion partner or a different expression host. But among the parts you can freely vary, it is the one with the largest ratio of impact to cost, and the one most people leave on default.

Design Linkers Rationally with Orbion

This is exactly the decision the Design tab in Orbion is built for. Instead of copying whatever linker your plasmid shipped with, you assemble the exact N-to-C construct from a curated component library that includes 13 linkers: flexible GGGGS-based, rigid EAAAK and A(EAAAK)×n helical, and semi-rigid variants, alongside tags, fusion partners, signal peptides, and cleavage sites. The Manual builder lets you place a specific linker and see the assembled protein sequence with a codon-optimized DNA sequence, cleavage sites and scar residues included.

When you are not sure whether to go flexible or rigid, or how long, the Combinatorial builder turns the guess into a screen. Vary the linker across your candidates while holding tag, partner, and target fixed, generate up to 5,000 variants, and score every one on solubility, disorder, aggregation, ΔTm (via AstraDTM), and ΔΔG (via AstraDDG). AstraUNFOLD flags disorder and aggregation-prone stretches at the junctions, exactly where a floppy linker invites proteolysis, and AstraPTM surfaces modification sites on the linker that matter for therapeutic constructs. Shortlist the winner and hand it straight to the Bench module for construct-aware protocols.

If your lab has a house linker that is not in the curated set, your organization can add custom linkers to its component library and use them in the same scored, combinatorial workflow.

Ready to stop shipping the default linker? Build your linker panel in Orbion, score it in minutes, and clone only the construct the data picked.
