One construct gives the tallest fluorescent peak. Another gives a smaller, more symmetrical peak. A third produces several peaks and a large late signal. Which one should receive the next expression run?
FSEC is most useful when fluorescence amount, peak shape, target identity, and recovery are interpreted together. The tallest peak alone does not identify the best membrane-protein construct. Fluorescence can come from intact fusion protein, released reporter, aggregates, or material whose behavior changes during extraction.
Fluorescence-detection size-exclusion chromatography lets you examine a fluorescently labeled target in a complex sample. Kawate and Gouaux established its use for precrystallization screening of integral membrane proteins. The practical value is early triage: identify promising constructs and conditions before committing to large-scale purification.
Key takeaways
- Keep absolute fluorescence, normalized peak shape, and input normalization together.
- Confirm which peaks contain intact target before ranking constructs.
- Choose candidates for the next experiment using recovered function and reproducibility as well as chromatography.
Begin with the sample history
A trace is the endpoint of expression, membrane recovery, solubilization, clarification, injection, separation, and fluorescence detection. Differences at any stage can change the result.
Before ranking constructs, record the expression input, extraction buffer, detergent, extraction duration and temperature, clarification procedure, injected volume, and detector settings. Also record whether fluorescence was measured before and after extraction. A low FSEC signal can reflect poor expression, poor extraction, loss during clarification, reporter behavior, or poor chromatographic recovery.
Keep the tag position and linker in view. A C-terminal GFP fusion and an N-terminal fusion are different constructs, and a tag that helps expression may still affect the target's activity or assembly. The GFP-based membrane-protein optimization protocol from Drew and colleagues illustrates how the reporter fits into a broader expression and purification workflow.
Decide which comparison the trace is making
“The same input” can mean the same culture equivalent, the same membrane input, the same extracted volume, or the same injected fluorescence. Each normalization removes some differences and preserves others. There is no single normalization that simultaneously answers expression, extraction efficiency, and chromatographic quality.
An equal-culture comparison is useful when the practical question is how much usable target a production run might yield. An equal-fluorescence injection can be useful for comparing the shapes of fluorescent populations, but it deliberately removes much of the signal difference you would otherwise use to assess output. An equal-volume injection is interpretable only with knowledge of the concentrations and histories of those samples.
State the normalization in the plot caption and keep the quantities needed to recover the other views. “Normalized fluorescence” without a denominator leaves readers guessing whether the traces were scaled to their maximum, their integrated area, or a reference preparation. These transformations are not interchangeable.
Also distinguish what happened before the column from what happened on it. If the soluble extract contains little fluorescence relative to the starting material, a low target-region FSEC signal cannot be attributed entirely to chromatographic loss. If the injected sample has substantial fluorescence but little returns in the recorded trace, investigate the collection window, detector response, and recovery. A final peak cannot locate an upstream loss on its own.
The method introduced by Kawate and Gouaux (2006) makes early assessment possible in unpurified material. That advantage is precisely why identity and normalization deserve care: the sample may contain more than one fluorescent species. The assay avoids a full purification before triage; it does not remove the need to know which species supports the decision.
Read the trace in regions, without assuming their identity
An early signal can be consistent with large assemblies or aggregates. A later narrow signal may be consistent with free reporter. The target–detergent complex is often expected between them. However, these assignments require controls and system calibration.
Run a suitable free-reporter control if reporter cleavage is a concern. Establish the column's void region using an appropriate standard and manufacturer guidance. Collect representative fractions and confirm which contain intact target fusion by gel analysis or another identity-sensitive method.
A late fluorescent peak should not be labeled “free GFP” solely because it looks familiar. It could contain another fluorescent species or a target fragment. Similarly, a broad early peak is a reason to investigate sample heterogeneity; it is not a complete diagnosis of aggregation.

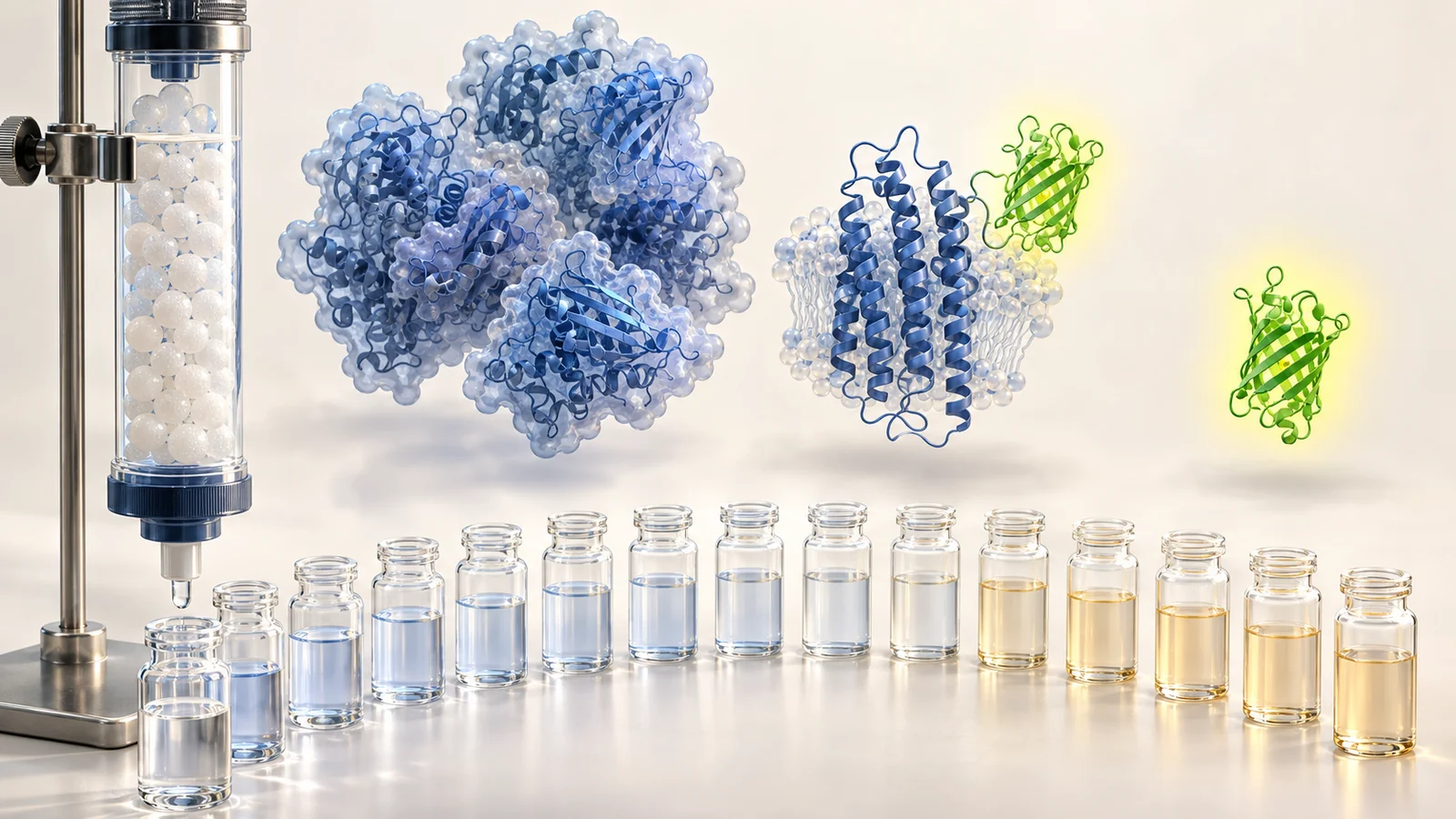

Figure 1. Different molecular species can contribute to an FSEC trace. Peak identities require calibration and fraction-level checks; these species are conceptual examples.
Compare absolute signal and normalized shape
Keep two views of the data. An absolute fluorescence plot preserves differences in recovered reporter signal. A normalized plot makes peak shape easier to compare but hides yield differences.
For a hypothetical screen, construct A might have twice the fluorescence of construct B but a broad early shoulder. After normalization, B might show a more compact target-associated peak. That is a tradeoff to investigate, not an automatic win for either construct.
Peak height depends on peak width as well as total signal. Integrated area can be more useful for comparing recovered fluorescence, provided the baseline, detector response, injection, and integration window are appropriate. Neither area nor height automatically equals target mass: reporter maturation, cleavage, and environment can affect fluorescence.
Always retain raw traces. A plotting choice that clips the early region, changes the baseline, or normalizes each curve independently can remove precisely the evidence needed to decide what to scale.
Why retention volume is not a molecular-weight measurement
SEC separates according to behavior in the column, related to hydrodynamic size rather than sequence mass alone. A membrane-protein complex includes associated detergent or lipid, and its shape can differ substantially from globular soluble standards.
A retention shift after changing detergent does not, by itself, show that the protein changed oligomeric state. The detergent-associated complex may have changed. Column interactions and formulation differences can also complicate interpretation.
Use retention as a reproducible comparative observation under defined conditions. If oligomeric state determines your next decision, choose an orthogonal method suitable for the target and formulation. Our discussion of protein in the SEC void volume expands on interpreting early-eluting material.
A worked comparison of three candidate traces
The following numbers are invented to illustrate interpretation, not acceptance thresholds. Assume comparable culture input and extraction history, unchanged detector settings, and a reference preparation showing stable column behavior. Integrated values are arbitrary fluorescence units and remain reporter measurements, not protein masses.
| Candidate | Target-associated area | Early material | Late reporter-like area | Initial interpretation |
|---|---|---|---|---|
| A | 80 | Substantial shoulder | 15 | High recovered signal with heterogeneity to investigate |
| B | 50 | Little visible | 8 | Lower signal with a compact target-associated population |
| C | 25 | Little visible | 90 | Much of the fluorescence may not represent intact target |
If only the highest point were shown, A could look best. If every trace were normalized to its own maximum and the late region cropped away, C might also look attractive. Neither display captures the full tradeoff. Fraction analysis is needed to determine whether the late material in C is actually free reporter and whether A's shoulder contains target.
Suppose identity checks support those assignments. B could be the stronger first candidate for a demanding structural preparation, while A remains a useful backup if its heterogeneous population can be separated without unacceptable loss. For a different application requiring a larger amount of moderately heterogeneous but functional protein, A may deserve priority. The assay supports a choice only in relation to the next experiment's requirements.
Now suppose a small purification shows that B loses activity after tag cleavage, whereas A retains it. That new evidence should change the decision. A narrow FSEC peak was never a guarantee that the untagged product would work. The value of the original screen is that it organized the uncertainty early, not that its ranking must remain permanent.
This example also explains why a composite score can conceal important failures. A high expression score should not compensate numerically for missing target identity. Use essential conditions as explicit gates, then compare the remaining tradeoffs. Preserve the raw evidence so a later change in project requirements can be assessed without repeating the whole screen.
Turn the screen into a small decision table
| Question | Evidence to retain | Why it affects scale-up |
|---|---|---|
| Is the signal from intact target fusion? | Fraction identity and cleavage checks | Reporter alone can inflate apparent success |
| Is recovery reproducible? | Comparable inputs and replicate traces | One attractive run may be a handling artifact |
| Is the target-associated peak reasonably homogeneous? | Shape, shoulders, early material | Heterogeneity may complicate purification |
| Does the result survive a relevant challenge? | Defined hold time or condition comparison | Freshly extracted material may deteriorate |
| Does the construct retain the required biology? | Binding, activity, or another functional test | Fluorescence does not establish function |
Avoid collapsing every column into an unexplained numerical score. A construct with excellent shape but a missing functional domain may be unsuitable regardless of its chromatography. A somewhat broader construct may still be the right choice if it preserves the biology and can be improved by formulation.
Use a small purification to test the scale-up assumption
Before a major expression run, purify a manageable amount of the leading candidates. Check whether the FSEC advantage persists after affinity capture, concentration, tag cleavage if required, and the buffer exchange needed for the experiment.
These steps can change the sample substantially. A fusion may look well behaved in crude extract but become unstable when the tag is removed. A strong signal may largely represent a population that does not survive purification. Conversely, a moderate crude-extract signal can yield a useful, reproducible target preparation.
If thermal challenge is relevant, FSEC-based thermostability approaches can compare how a target-associated peak survives defined treatment. The FSEC thermostability study by Hattori and colleagues provides an experimental example. Such a readout is condition dependent; it does not make fluorescence a universal measure of folding free energy.
Preserve activity or binding measurements wherever possible. Expression host and preparation can affect functionality, as demonstrated in a study comparing membrane-protein production in E. coli strains.
Figure 2. A small purification tests whether a promising FSEC result carries through to recovered material suitable for further characterization. Conceptual laboratory illustration.
Separate extraction quality from stability over time
An attractive fresh trace describes a sample at one point in its history. The next experiment may require concentration, transport, tag removal, or a longer interval before measurement. A construct can pass the first screen and fail at one of these later transitions. Define which transition is most likely to limit the intended use before deciding what follow-up has value.
Thermal challenge and ordinary handling are different tests. Hattori et al. (2012) established FSEC-TS as a way to compare survival of a target-associated chromatographic population after heating. A result from that assay is tied to its treatment and readout. It does not substitute for observing whether the same sample retains function over the actual handling period.
Similarly, a detergent that extracts more fluorescent material need not produce more active target. Mathieu et al. (2019) demonstrated a separation between membrane-protein production and functionality in the systems they examined. The practical interpretation is to preserve a functional check when function determines project success, rather than allowing fluorescence to stand in for every downstream property.
Repeatability should be judged at the level of the decision. Reinjection of one vial tests a different source of variation from independent expression and extraction. If independent preparations disagree while reinjections agree, increasing the number of chromatographic replicates alone will not locate the instability. Keep preparation identifiers with the traces and compare where their histories diverged.
For the handoff, retain both absolute and normalized plots, the regions used for integration, identity evidence, and the conditions under which the selected sample remained useful. A colleague should be able to tell why the candidate advanced and what has yet to be established. That record is substantially more informative than “good FSEC” beside a construct name.
A practical scale-up decision
Advance the candidate whose intact target-associated signal, reproducibility, purification behavior, and required function support the next experiment. Keep a backup with a different useful strength. Document why candidates were rejected: cleavage, poor extraction, heterogeneity, instability, or functional failure are distinct lessons for the next design round.
Orbion Bench supports construct planning, while the experimental FSEC record establishes how those constructs behaved. Use the sequence, tag position, boundary choices, and assay conditions together when deciding what to revise. Our construct-boundary workflow helps turn a failed construct into a specific design question.
Common questions
Is the narrowest peak always best?
No. Confirm its identity and whether enough functional target can be recovered. A narrow free-reporter peak is not a successful target preparation.
Can I compare traces collected on different days?
Yes, with appropriate reference material, consistent instrument settings, and documented column performance. Without those controls, changes in the system can masquerade as changes in the construct.
Should I normalize all traces before presenting them?
Show normalized shapes when useful, but retain an absolute-signal view and describe input normalization. The two views answer different questions and are strongest together.
