The purification looked reasonable until sample preparation. After heating, the expected band becomes a smear, shifts upward, or seems to vanish. It is tempting to conclude that the protein degraded during purification.
For a membrane protein, heating in SDS sample buffer can itself change what reaches and migrates through the gel. Aggregation, incomplete solubilization, unusual detergent binding, and detection problems can all produce confusing patterns. The first useful experiment is a controlled comparison of sample-preparation conditions, not a new purification campaign.
Keep two questions separate: did the protein enter the gel, and does its migration report molecular weight in the way you expected?
Key takeaways
- Distinguish a protein that fails to enter the gel from one that migrates anomalously or is poorly detected.
- Use matched comparisons to locate the effect of sample preparation before interpreting expression or degradation.
- A sharp band or apparent doubled mass does not establish native folding or oligomeric state.
Why standard boiling can give a misleading result
SDS-PAGE works best when proteins form reasonably comparable detergent–polypeptide complexes. Membrane proteins can deviate from that assumption. Their hydrophobic sequences, retained structure, and detergent interactions affect migration.
Rath and colleagues showed that detergent binding helps explain anomalous membrane-protein migration. Their later work demonstrated that acrylamide concentration can change the direction and magnitude of gel shifts. These findings explain why an apparent band mass is not a direct measurement of membrane-protein oligomeric state.
Heating may improve unfolding for one target while promoting aggregation for another. There is no universal temperature that makes every membrane protein behave well. A vendor's sample-preparation recommendation is a starting condition, not proof that your target tolerates it.

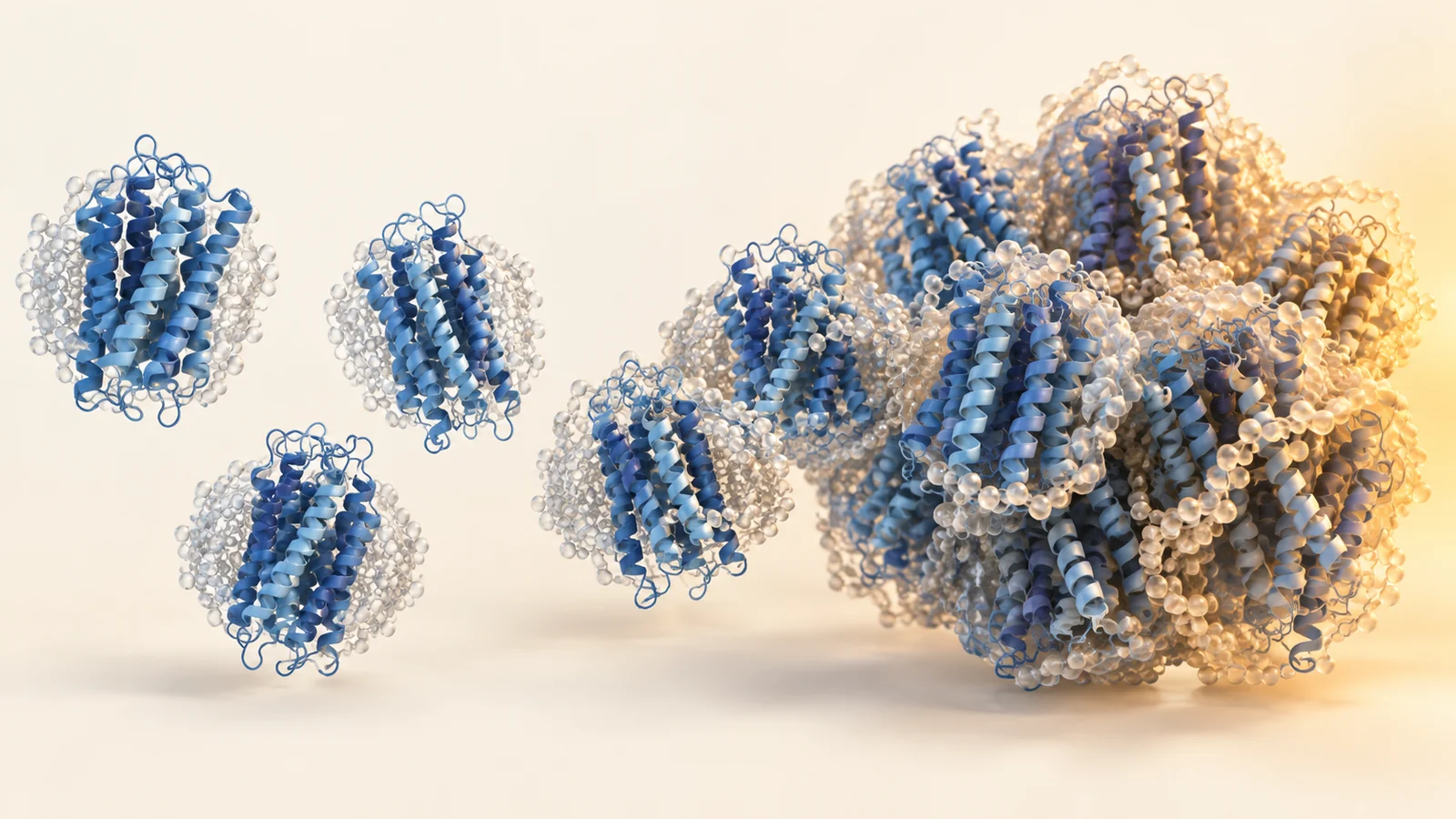

Figure 1. Heating can change the aggregation behavior of some membrane-protein preparations. The response is target dependent; this is a conceptual view, not an experimental result.
Three explanations that should stay separate
The first distinction is between solubilization, migration, and detection. Solubilization determines whether the sample remains dispersible enough to enter the gel. Migration determines where that material travels. Detection determines which of those species you can see. A change at one stage can resemble a change at another, but the corrective action is different.
For example, a heated aliquot that leaves target-reactive material in the well has a different problem from an aliquot that enters cleanly and runs below its calculated mass. The first observation points toward a preparation-dependent change in dispersibility. The second can arise from the properties of the protein–SDS complex. Neither observation alone establishes that the original purified sample was degraded.
Heating also creates a new experimental environment. A membrane protein that was dispersed in a mild detergent before sample preparation is now exposed to SDS, altered redox conditions, and a temperature history. The gel therefore reports the outcome of that treatment as well as the composition of the original sample. It is possible to have a good native preparation and a poor electrophoresis preparation at the same time.
The distinction matters especially when comparing constructs. If one construct survives your loading treatment and another aggregates during that treatment, band intensity may rank their preparation tolerance rather than their expression. Conversely, changing preparation conditions separately for every construct makes the comparison difficult to reproduce. Establish a common analytical condition where possible, and document exceptions as exceptions.
There is experimental evidence that even a seemingly obvious “dimer band” can mislead. Walkenhorst et al. (2009) found that a transmembrane peptide could migrate at an apparent doubled mass without the interaction expected for dimerization in their independent fluorescence measurements. This was a defined peptide system, not a universal explanation for every membrane-protein band. It illustrates why migration needs corroboration before becoming an assembly claim.
Start with matched aliquots
Use one well-mixed sample and split it into equal aliquots before treatment. Compare the current preparation with a lower-temperature condition and an unheated condition compatible with the gel system. Choose temperatures and incubation times from the relevant gel and sample-buffer guidance, then document them exactly.
Keep protein input, final detergent and reducing-agent concentrations, sample volume, holding time, and loading order comparable. If you change heat, detergent, reducing agent, and gel chemistry simultaneously, an improved band will not tell you which change mattered.
Include a sample-buffer blank and an appropriate positive detection control. If you are comparing purification fractions, normalize deliberately: equal fraction volumes answer a different question from equal estimated protein masses.
Do not discard a visible precipitate without recording it. If you investigate post-treatment soluble and insoluble material, retain both fractions and account for the volumes. The pellet may require a compatible solubilization approach for analysis; the absence of a soluble band alone does not establish degradation.
Read the whole lane, including the well
A disappeared band can leave evidence above the region where you expected to find it. Inspect the well, stacking region, top of the resolving gel, and diffuse material across the lane. Compare a total-protein stain with target-specific detection where feasible.
| Pattern | Useful next check |
|---|---|
| Signal near the well or gel top after heating | Test heat-dependent aggregation and whether material was loaded completely |
| Broad smear rather than one band | Compare load, sample matrix, preparation conditions, and gel suitability |
| Lower bands appearing as the full-length band falls | Investigate cleavage or degradation with identity-sensitive detection |
| Clean stained band but weak Western signal | Examine transfer, epitope accessibility, and antibody performance |
| Consistent shifted band across treatments | Consider anomalous migration, modifications, and actual construct identity |
These observations narrow hypotheses; they do not identify a mechanism on their own. A smear can arise from more than one problem, and a band at twice the expected mass does not by itself prove a native dimer.
Our guide to a band at the wrong molecular weight covers sequence, modification, and detection explanations beyond heat treatment.

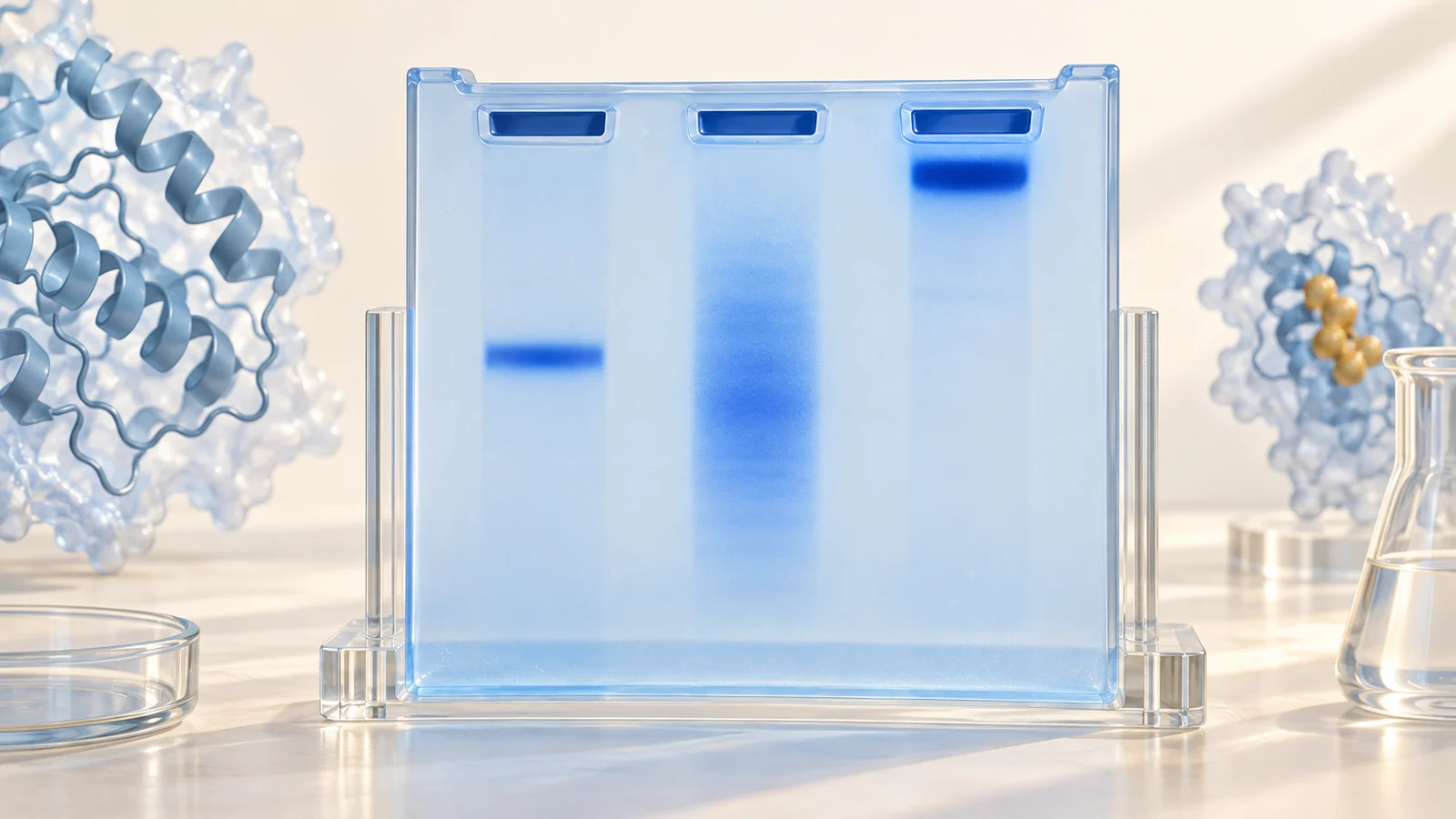

Figure 2. A band, a smear and material retained near the well point to different questions about sample preparation. These hypothetical lanes illustrate patterns only and are not experimental data.
Distinguish preparation effects from overloading
Run a small loading series under the most informative preparation conditions. If the smear collapses into a sharper band at lower input, overloading or the amount of co-loaded matrix may contribute. Interpret this carefully: reducing sample volume reduces detergent, salt, lipid, and contaminants as well as protein.
Where practical, keep the final loading matrix comparable across the series. Verify that the sample-buffer ratio is correct and that the sample enters the well cleanly. Highly viscous samples or precipitated material can make nominally equal pipetted volumes unequal in practice.
If the protein is in a detergent formulation, record the identity and concentration carried into sample preparation. Changing the purification detergent may change the pattern, but SDS-PAGE alone cannot tell you which formulation preserves the native protein best. A condition that produces a beautiful denatured band can still be poor for function or structural work.
For the upstream formulation decision, use our detergent-selection workflow alongside solution-state evidence.
Worked example: the band disappears only after heating
Consider a hypothetical purified transporter with a terminal affinity tag. The current preparation produces a faint band and a dark region near the gel top. A matched unheated aliquot produces a stronger, discrete band that migrates below the sequence-derived mass. A lower-load heated aliquot still shows the same redistribution toward the top.
That pattern supports a heat-associated change; it does not yet establish the molecular mechanism. The lower-load comparison makes simple overloading less convincing as the sole explanation. The discrete unheated band gives you an analytical condition for follow-up, but its migration is not enough to establish intact identity. A tag-specific signal could also come from a fragment retaining the tag.
The next interpretation should use evidence from distinct stages. If the original solution remains homogeneous by an appropriate solution-state measurement, the gel-top material may have formed during sample preparation. If target-containing early SEC fractions were already present before heating, both the original preparation and the gel treatment may contribute. Treating these as mutually exclusive explanations would miss that possibility.
Now imagine the opposite result: total-protein staining shows a comparable discrete band under both preparations, but the heated sample is weak on the blot. That shifts attention toward transfer or antibody recognition. Repeating expression is unlikely to resolve a failure introduced after electrophoresis. A control that tests the detection stage has more diagnostic value than another production batch.
Finally, suppose low-mass bands increase while a full-length band falls under every preparation condition. Cleavage becomes a stronger hypothesis, particularly if different antibodies identify opposite ends of the protein in separate fragments. Even then, establish identity before calling each visible band a degradation product. Co-purifying proteins can occupy the same mass region.
The useful report is a bounded statement such as “the current heating treatment redistributes target-reactive material toward the gel top.” That statement is directly supported by the comparison and tells the next person what changed. “The transporter is unstable” is broader and may be false in the solution conditions relevant to the project.
Test reducing conditions as a separate variable
Disulfide-linked material and heat-induced aggregation are different hypotheses. If disulfides are relevant to the construct, compare reducing and nonreducing preparation in a controlled follow-up. Check reagent freshness and compatibility with the sample and detection method.
Do not assume a reducing agent should eliminate every high-molecular-weight species. Noncovalent aggregates, incompletely solubilized material, and other covalent modifications may behave differently. Conversely, changing a disulfide-rich extracellular domain's redox state can substantially alter its behavior without implying that the purification failed.
Use a small experiment matrix rather than every imaginable combination. First establish whether heating matters. Then test the variable most likely to explain the remaining pattern. This preserves sample and makes the outcome easier to interpret.
Check whether the problem is actually transfer or detection
If the band disappears only on a Western blot, return to the gel. Inspect a stain or another suitable total-protein readout, and assess transfer with controls appropriate to the membrane and system. A large or aggregated species can transfer differently from a compact lower-mass band.
The antibody may recognize a terminal tag that has been cleaved away. Alternatively, a target-specific antibody may have different sensitivity under the preparation conditions. Comparing antibodies against distinct regions can help, but their intensities are not directly interchangeable measurements of protein mass.
For a hypothetical tagged transporter, suppose an unheated aliquot shows a target-reactive band, while the heated aliquot shows material at the gel top. That supports a heat-dependent preparation problem. If both gels contain a similar band but only one blot is weak, transfer or epitope behavior deserves attention before changing expression conditions.
The Abcam protocols collection includes sample-heating and Western troubleshooting guidance. Apply the recommendations to your actual gel chemistry and target rather than treating one protocol as universal.
Quantify only what the readout can support
For a comparative gel, define the quantity before drawing integration boxes. Are you comparing the main band, all target-reactive material across the lane, or the proportion retained near the well? Those measurements answer different questions. Integrating only the expected band can convert a preparation-induced redistribution into an apparent loss of expression.
Check that the image is within the usable range of the detection method. A saturated band cannot report how much more protein one sample contains, and an unsaturated camera image does not by itself prove that staining or antibody response is linear. Keep acquisition and processing comparable, retain uncropped images, and explain how background was estimated. These are prerequisites for interpreting intensity differences rather than cosmetic reporting choices.
Apparent molecular weight deserves the same discipline. Record the ladder and gel system, but do not use proximity to a marker as the only identity test. A predicted mass should correspond to the actual product: full fusion, cleaved target, processed chain, or modified protein. Comparing a cleaved construct to the full-fusion mass creates a discrepancy before the experiment starts.
When the gel remains ambiguous, choose a follow-up for the unresolved question. Identity-sensitive analysis addresses whether the band is the target. An appropriate solution-state method addresses assembly or aggregation. A functional assay addresses whether the preparation performs the intended task. Repeating a different denaturing gel may improve separation, but it still does not turn electrophoretic mobility into a native-state measurement.
What to carry forward
Choose a preparation condition that gives reproducible, interpretable detection, and keep it consistent when comparing constructs or batches. Save the gel system, load, treatment temperature and duration, reducing conditions, detergent matrix, and detection method with the image.
Then assess the purified protein in the state needed for your experiment. SEC, a binding or activity assay, and another suitable solution-state measurement answer questions that denaturing electrophoresis cannot.
When comparing designs in Orbion Bench, retain the exact sequence, tags, and cleavage history alongside the experimental result. An apparent expression difference may otherwise be a difference in how two constructs survive sample preparation.
Common questions
Should I stop heating all membrane proteins?
No. Establish a target-specific preparation using matched aliquots and the gel manufacturer's guidance. Some proteins need heat for interpretable migration; others aggregate under the same treatment.
Does a sharp band prove the protein is folded?
No. SDS-PAGE is a denaturing analysis. A clean band supports sample identity or purity only to the extent justified by the detection method; it does not establish native folding or function.
Can I identify a dimer from its apparent mass?
Treat that as a hypothesis. Membrane-protein migration can be anomalous, and detergent-bound complexes need not follow soluble-protein standards. Use an appropriate orthogonal method to investigate oligomeric state.
References
- Rath A, et al. Detergent binding explains anomalous SDS-PAGE migration of membrane proteins. PNAS. 2009. doi:10.1073/pnas.0813167106
- Rath A, Cunningham F, Deber CM. Acrylamide concentration determines the direction and magnitude of helical membrane protein gel shifts. PNAS. 2013. doi:10.1073/pnas.1311305110
- Walkenhorst WF, et al. Polar residues in transmembrane helices can decrease electrophoretic mobility in polyacrylamide gels without causing helix dimerization. Biochimica et Biophysica Acta. 2009. doi:10.1016/j.bbamem.2009.02.017
- Abcam. Protocols book: electrophoresis, Western blotting and troubleshooting guidance. Official guide. Accessed October 2026.
